AC Electric Drive with Axial Pump

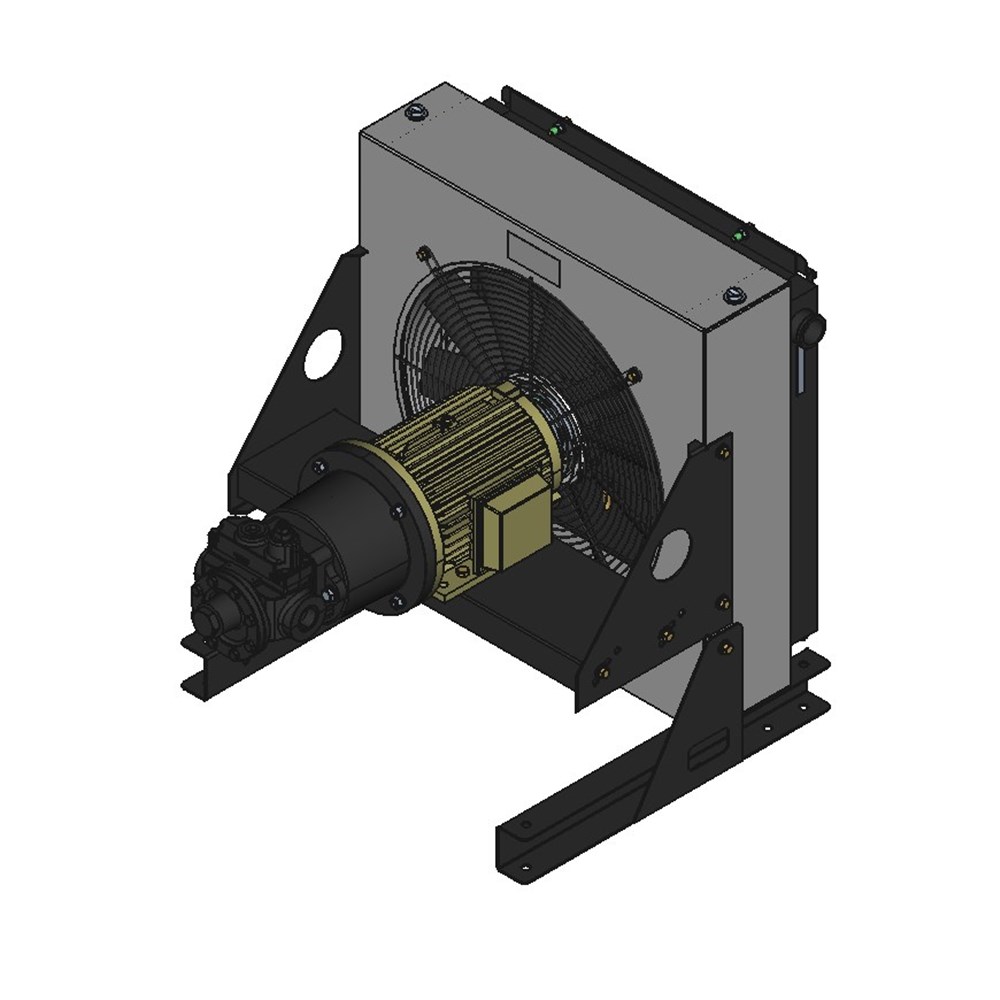

AIR COOLED Heat Exchanger DC DC31Y 415V 3Phase 50Hz 4Pole 500mm Fan & 10UR 40l/min Pump

Product Code: DC31YH5AC4HP40

In Stock Low Stock Contact for Availability Please See Attributes
Enquire
Technical Specifications
Description of part Air cooled Heat Exchanger
Series DYNACOOL with Coaxial Pump
Model DC31
Cooling Element Type Aluminium Hi Flow 65mm Operating Pressure 20 Bar
Port Orientation Hoizontal
Fan Diameter 500 mm
Drive Type 3 Phase 415v Electric Motor
Motor/Fan Speed 4 Pole Nom 1450 rpm at 50Hz
Cooler Pump Type Haight Pump
Cooler Pump Flow Rate 40 L/min
Noise Level dBA at 1m 85 DBA
Weight of Item 115.0 KG
Qty Each (inc GST) Each
Spare Parts
COOLING ELEMENT Aluminium DC31Y replacement 20 Bar 1 1/4" BSPP 622 x 635 x 65mm
COOLING ELEMENT Aluminium DC31Y replacement 20 Bar 1 1/4" BSPP 622 x 635 x 65mm 1E2926 In Stock In Stock Contact for Availability Please See Attributes 1
$2929.30 (Each)
Increase value Decrease value
HAIGHT PUMP 10UR Relief Valve 26.12CC with Mechanical Seal CCW Rotation for Pump Coolers
HAIGHT PUMP 10UR Relief Valve 26.12CC with Mechanical Seal CCW Rotation for Pump Coolers 10UR010MA In Stock In Stock Contact for Availability Please See Attributes 1
$4112.90 (Each)
Increase value Decrease value
M28 Flexible Coupling 7/8" Bore 3/16" & 1/4" Key
M28 Flexible Coupling 7/8" Bore 3/16" & 1/4" Key GM28/14 In Stock In Stock Contact for Availability Please See Attributes 1
$84.70 (Each)
Increase value Decrease value
M28 Flexible Coupling 28mm Bore 8mm Key
M28 Flexible Coupling 28mm Bore 8mm Key GM28/75 In Stock In Stock Contact for Availability Please See Attributes 1
$84.70 (Each)
Increase value Decrease value
M28 Nylon Element White with 28 Teeth
M28 Nylon Element White with 28 Teeth GM28/E In Stock In Stock Contact for Availability Please See Attributes 1
$67.10 (Each)
Increase value Decrease value
