Aftermarket

Manufactureres of Replacement Component Parts for Automotive, Tractor, Off-road, Mining Equipment etc.

Our Aftermarket Service division based in Ballina, can provide batch manufacture of components, using our modern CNC machines for production turning, gear and spline hobbing and shaping.

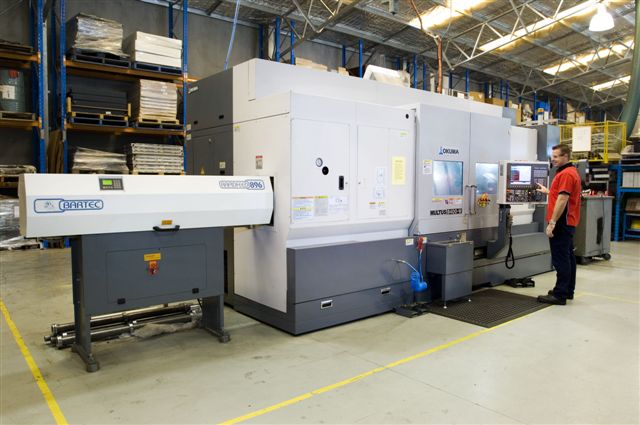

Our machining capacity includes the Okuma Multus multifunction CNC machine. This machine is equipped with double ended spindles for complete machining of parts in one set up. This five axis machine; C, X, Y Z and B; allows operations such as turning, milling, drilling and tapping to be performed at any angle. The machine tool capacity is 80 stations and automatic bar feed up to 100mm diameter. Single work pieces up to 710mm diameter or 1500 mm in length can be accommodated in the machine. The capacity and versatility of our CNC machines enable work pieces of considerable complexity to be produced with a minimum number of operations. Such versatility permits considerable reduction in cost whilst maintaining a high degree of quality and accuracy.

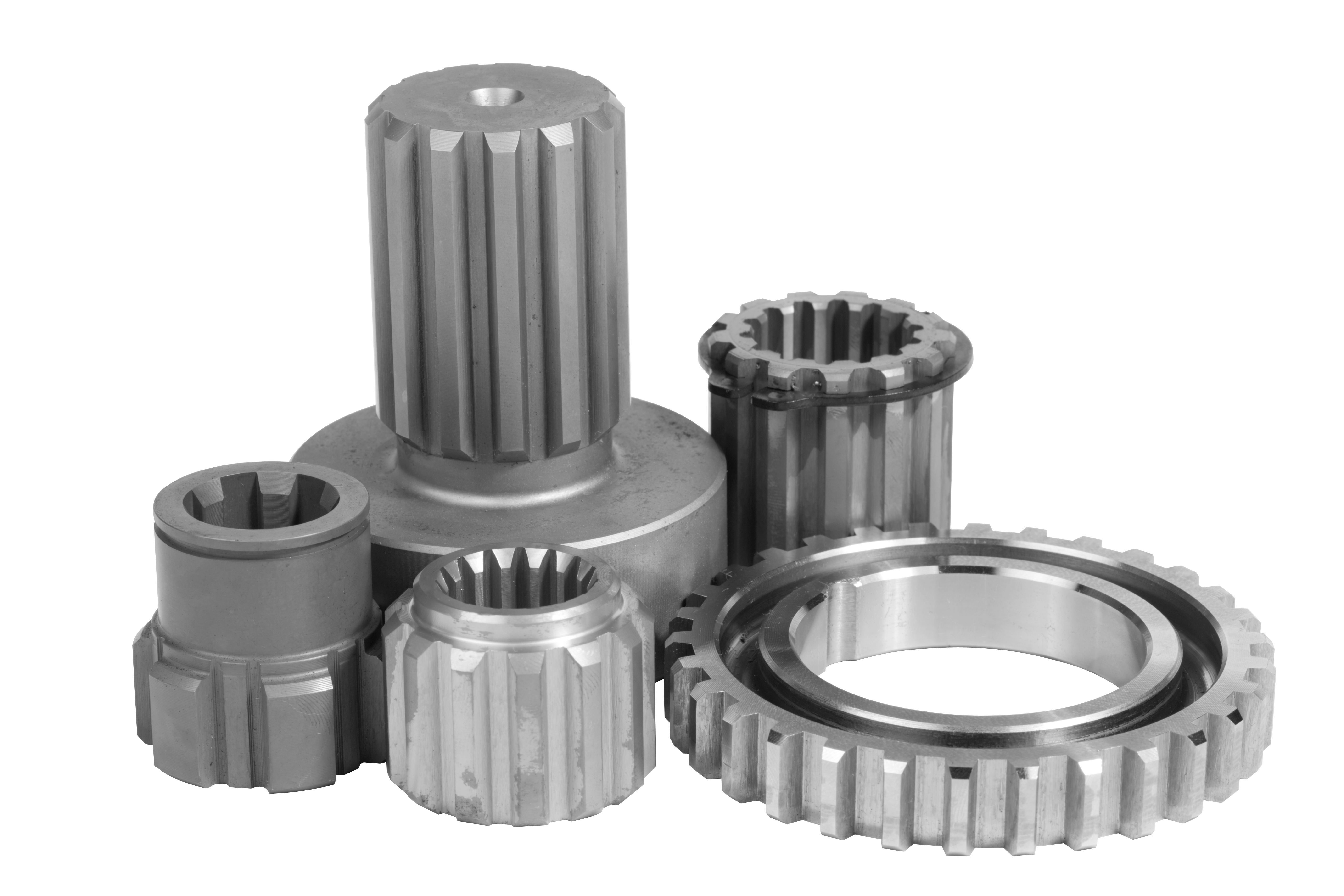

Production of Splined Components is our Speciality

We are specialists in the production of splined components. External splines are produced either on our hobbing machines or gear shapers. We have a large range of external splined hobs and external spline shaper cutters.

Internal splines are produced either by broaching or by gear shaping. We have a very extensive range of broaches and internal shaper cutters for imperial and metric involute splines as well as a large range of tools for the production of straight sided splines.

External and Internal Keyways

Our facilities include capacity for high volume production of external keyways by several methods including the ability to provide very accurate width and depth tolerances in any size to 1” width. We also have extensive production keyway broaching capacity up to 16mm key width.

Other Services

OEM Dynamics have “in house” design, procurement and manufacture capacity, so we can meet the demands of your specifications.

OEM Dynamics offers a reconditioning service on all OEM power transmission components as well as other manufacturer’s pump drives, transfer boxes and right angle drives.

Finishing process including
Heat treatment,
Blackening,
Powder coating,
Painting,
Anodizing,
Alectroplating and galvanizing.
Import and export service available.

Please contact our Customer service centre to discuss your specific requirements .

Turning


(2) 5 Axis CNC Lathe, Max Diameter 710 mm, Max Length 1500 mm, Live tooling
(1) 4 Axis CNC Lathe, Max Diameter 450 mm, Max Length 800 mm, Live tooling
(1) 4 Axis CNC Lathe, Max Diameter 450 mm, Max Length 440 mm, Live tooling
(1) Conventional Lathe, Max Diameter 300 mm, Max Length 1000 mm

Spline Cutting


(1) Horizontal broach, Pull capacity 70,000 lbs, various broaches up to 3″ diameter
(3) Shaper cutters, Max Stroke 4″
Splines also cut on hobbing machines.
Tooling for up to 3 DP and 5 module splines

Gear Cutting


(2) Vertical hobbing machine, Max OD 300 mm x max Length 1000mm, 200mm cut length
(1) Horizontal hobbing machine, Max OD 350 mm x max Length 1000mm, 1000mm cut length
Cutters for up to 3 DP

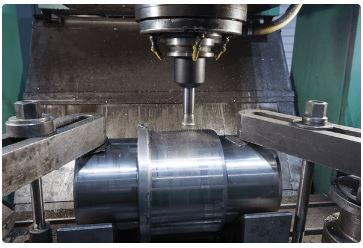

Milling and drilling


(1) Conventional Vertical Mill
(1) Mill/Drill
Milling also available on CNC Lathes
(1) CNC Vertical Drill, Max Hole Diameter 16 mm x max Spacing 400 mm
(14) Conventional drill stands


Welding


Steel, Stainless Steel and Aluminum

Gearbox and Pump Drives


Design and manufacture for new installation or replacement
Rebuild and service of existing plant

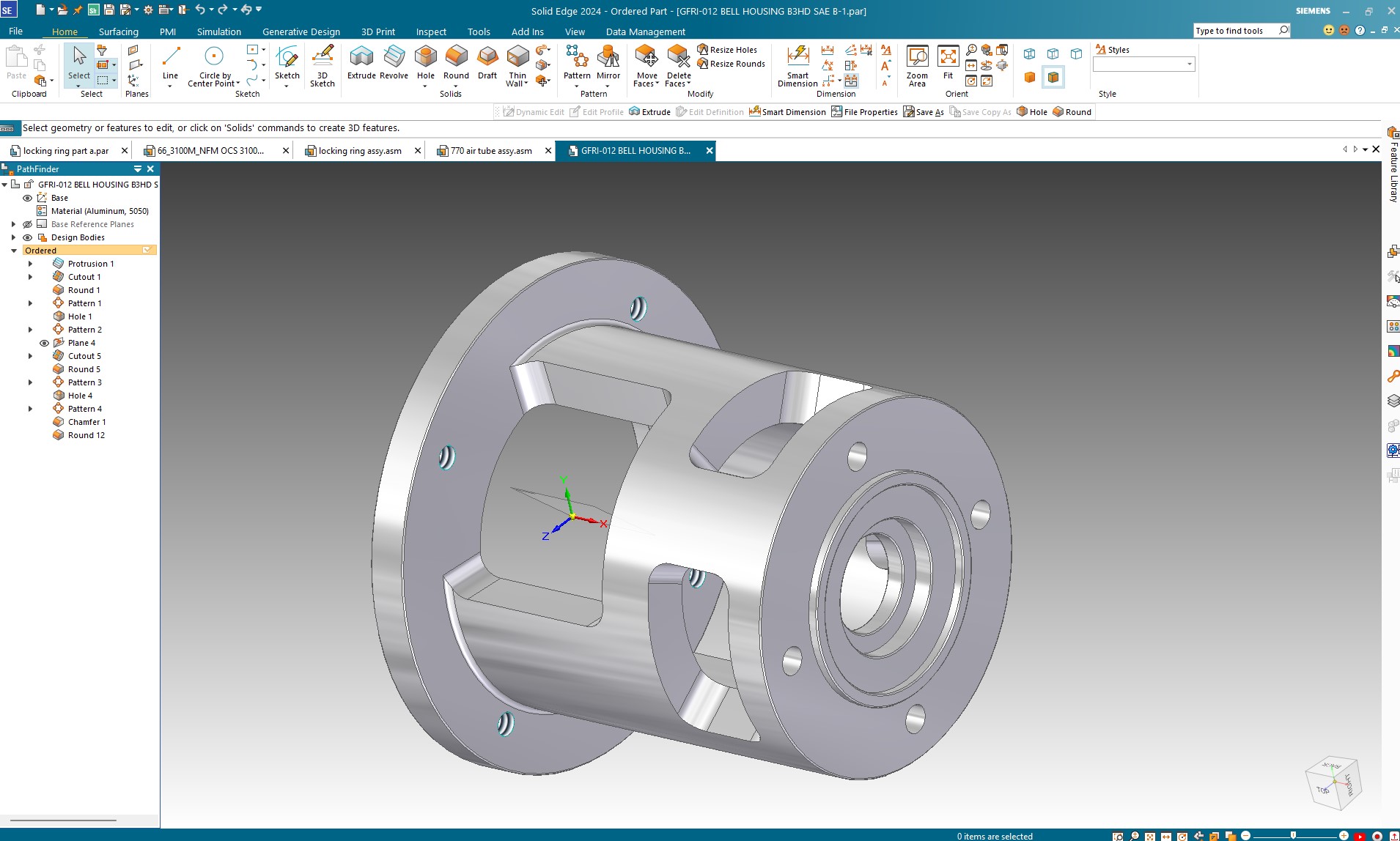

CAD design and 3D modellingPump


OEM Dynamics can offer fast, efficient and accurate modelling of parts and assemblies using the latest Solid Edge CAD modelling program from Siemens PLM
We can import/export DXF, DWG, STP and IGES formats and can export to pdf, 3d models or 3d pdf.

Quality Assurance

OEM DYNAMICS Manufacturing Division has Quality Assurance accreditation to lS09001. The assessor is Lloyds Register.

You can be resaured that the product is of the hightest quality as we use fully calibrated measuring instruments and master gauges.

We can supply material traceability, manuals and documentation as required.



We are specialists in the manufacture & servicing of Power Transmission and Heat Transfer products.

We offer solutions from minor repairs through to complete overhauls.

Contact us for a quote
