Our Products

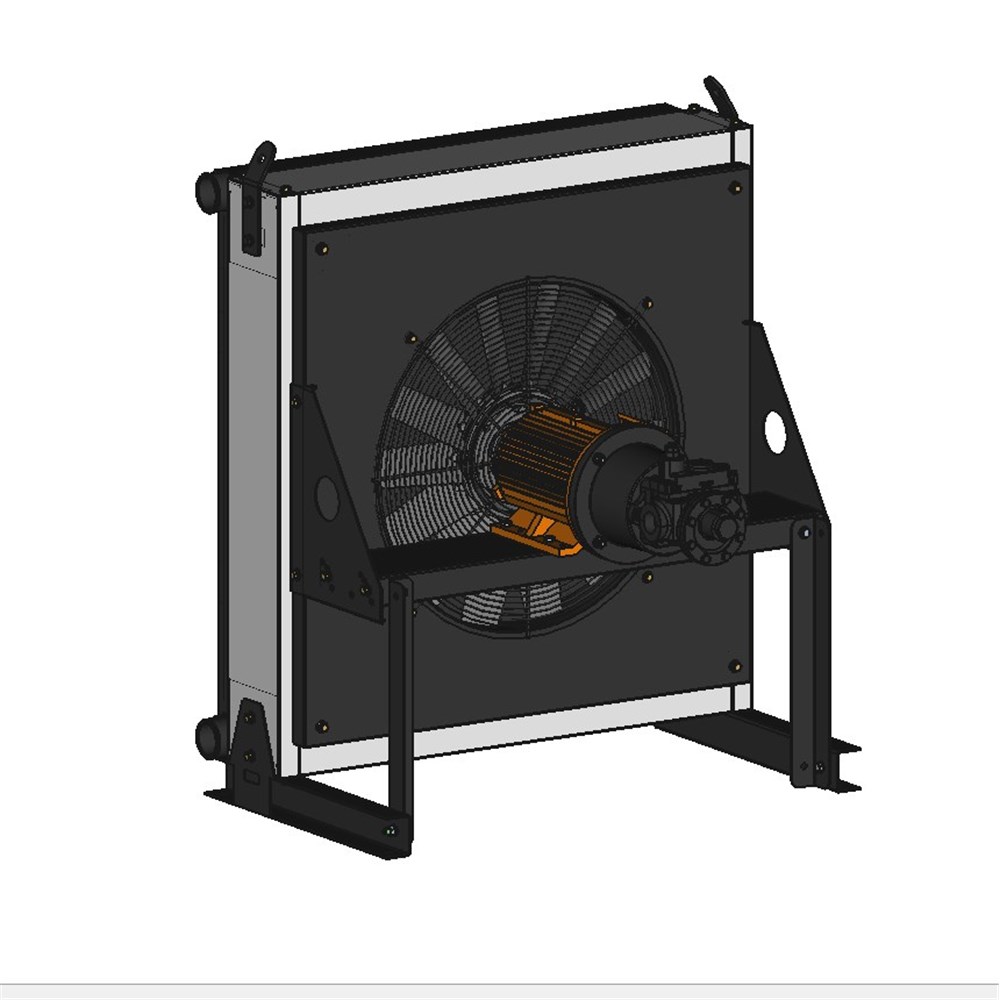

Special Application AC Electric Drive with Axial Pump

AIR COOLED Heat Exchanger ST ST75R 415V 3 Phase 50Hz 4Pole 630mm Fan & 40UR 125l/min Pump

Product Code: ST75RH6AC4HP125

In Stock Low Stock Contact for Availability Please See Attributes
Enquire
Technical Specifications
Description of part Air cooled Heat Exchanger
Series DYNACOOL Special Application with Coaxial Pump
Model ST75
Cooling Element Type Steel Fin, Copper tube, Steel tanks Operating Pressure 20 Ba
Port Orientation Hoizontal
Fan Diameter 630 mm
Drive Type 3 Phase 415v Electric Motor
Motor/Fan Speed 4 Pole Nom 1450 rpm at 50Hz
Cooler Pump Type Haight Pump
Cooler Pump Flow Rate 125 L/min
Noise Level dBA at 1m 91 DBA
Weight of Item 145.0 KG
Qty Each (inc GST) Each
Spare Parts
COOLING ELEMENT Heavy Duty Steel Fin & Tank Cu Tube 20Bar 2" BSPP 1061 x 995 x 76mm
COOLING ELEMENT Heavy Duty Steel Fin & Tank Cu Tube 20Bar 2" BSPP 1061 x 995 x 76mm 67/649S8H In Stock In Stock Contact for Availability Please See Attributes 1
P.O.A. (Each)
​
M38 Flexible Coupling 7/8" Bore 3/16" & 1/4" Key
M38 Flexible Coupling 7/8" Bore 3/16" & 1/4" Key GM38/14 In Stock In Stock Contact for Availability Please See Attributes 1
$128.70 (Each)
Increase value Decrease value
M38 Nylon Element White with 44 Teeth
M38 Nylon Element White with 44 Teeth GM38/E In Stock In Stock Contact for Availability Please See Attributes 1
$89.10 (Each)
Increase value Decrease value
M38 Flexible Coupling 28mm Bore 8mm Key
M38 Flexible Coupling 28mm Bore 8mm Key GM38/75 In Stock In Stock Contact for Availability Please See Attributes 1
$128.70 (Each)
Increase value Decrease value
