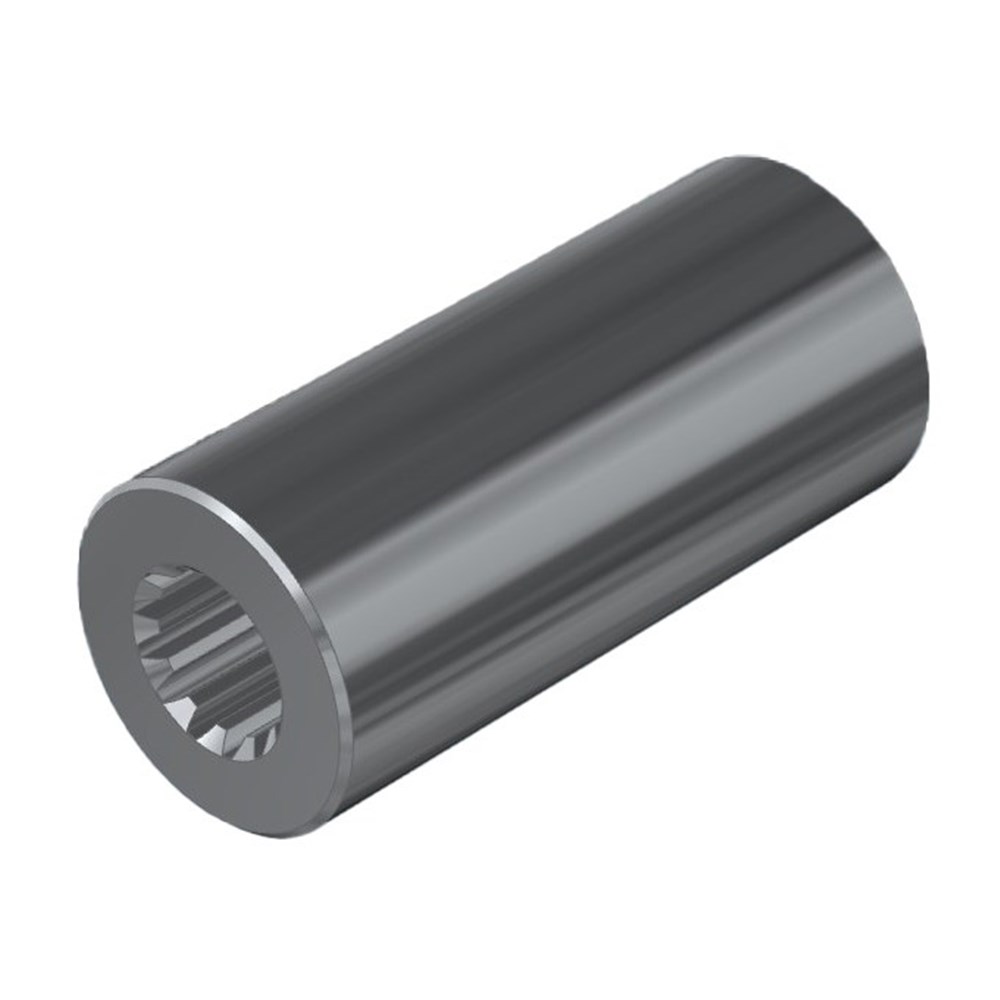

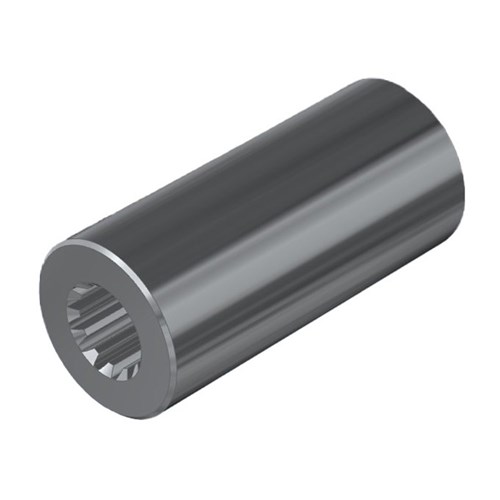

SPLINE ADAPTOR COUPLING Female 13T 7/8" 16/32 Female 15T 1" 16/32

Product Code: 56/03004

In Stock Low Stock Contact for Availability Please See Attributes
$699.60 inc GST
Increase value Decrease value
Technical Specifications
Description of part Spline Adaptor Coupling
Metric or Imperial System Imperial Measurements
OEM Bore and shaft code register 3
No of Teeth 13
Nominal Spline Outside Diameter 0.875 IN
Specification of the spline 16/32 DP INVOLUTE CLASS 5
Origin or Standard Imperial ANSI spline
Metric or Imperial System Imperial Measurements
OEM Bore and shaft code register 4
No of Teeth 15
Nominal Spline Outside Diameter 1.000 IN
Specification of the spline 16/32 DP INVOLUTE CLASS 5
Origin or Standard Imperial ANSI spline
Outside Dia Metric 41.70 MM
Part overall length Metric 93.00 MM
