Adaptor couplings

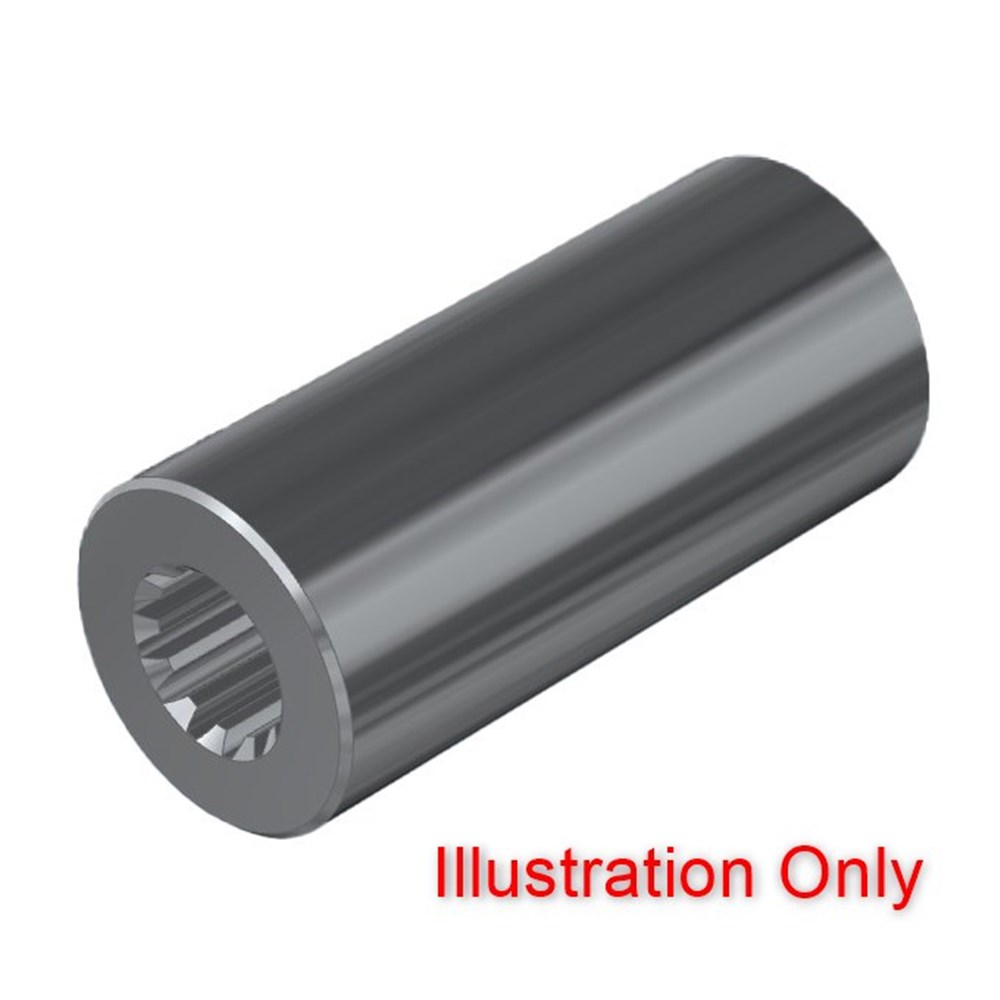

SPLINE ADAPTOR COUPLING Female 9T 5/8" 16/32 Female 17T 1 1/8" 16/32

Product Code: 56/01027

In Stock Low Stock Contact for Availability Please See Attributes
Technical Specifications
Description of part Spline Adaptor Coupling
Metric or Imperial System Imperial Measurements
OEM Bore and shaft code register 1
No of Teeth 9
Nominal Spline Outside Diameter 0.625 IN
Specification of the spline 16/32 DP INVOLUTE CLASS 5
Origin or Standard Imperial ANSI spline
Metric or Imperial System Imperial Measurements
OEM Bore and shaft code register 27
No of Teeth 17
Nominal Spline Outside Diameter 1.125 IN
Specification of the spline 16/32 DP INVOLUTE CLASS 5
Origin or Standard Imperial ANSI spline
Outside Dia Metric 41.70 MM
Part overall length Metric 70.30 MM
Qty Each (inc GST) Each
