SPLINE STUBWELD 15T 1" 16/32 SAE BB
Stubwelds
Zoom

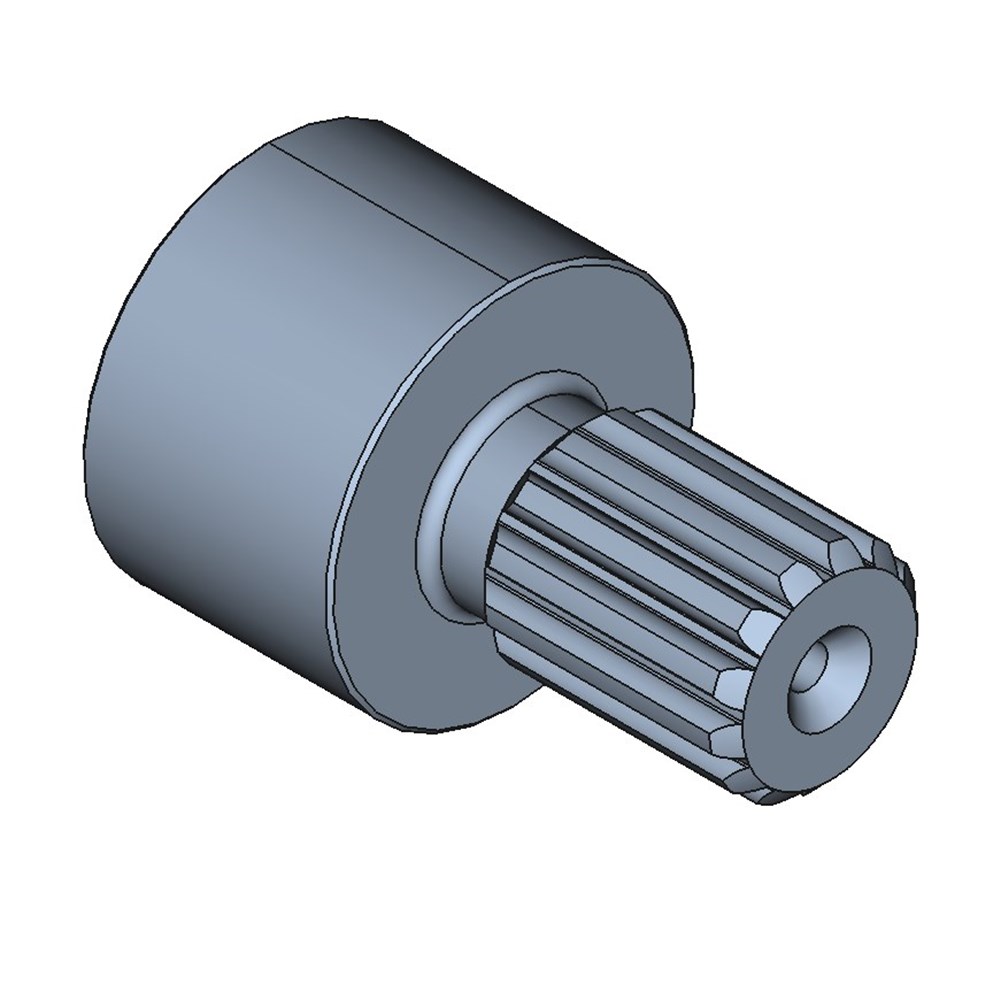

SPLINE STUBWELD 15T 1" 16/32 SAE BB
Product Code: 76/70004
In Stock
Low Stock
Contact for Availability
Please See Attributes
$393.80
inc GST
Increase value
Decrease value
Add to cart
Technical Specifications
Description of part
Splined Stubweld
Metric or Imperial System
Imperial Measurements
OEM Bore and shaft code register
4
No of Teeth
15
Nominal Spline Outside Diameter
1.000 IN
Specification of the spline
16/32 DP INVOLUTE CLASS 5
Origin or Standard
Imperial ANSI spline
Part overall length Metric
68.00 MM
OD of butt end
44.45 MM
Length of spline
31.00 MM
Length of spline to shoulder
38.00 MM
Known Uses for this part
HYDRAULIC SAE BB Spline
