Our Products

AC Electric Drive with Axial Pump

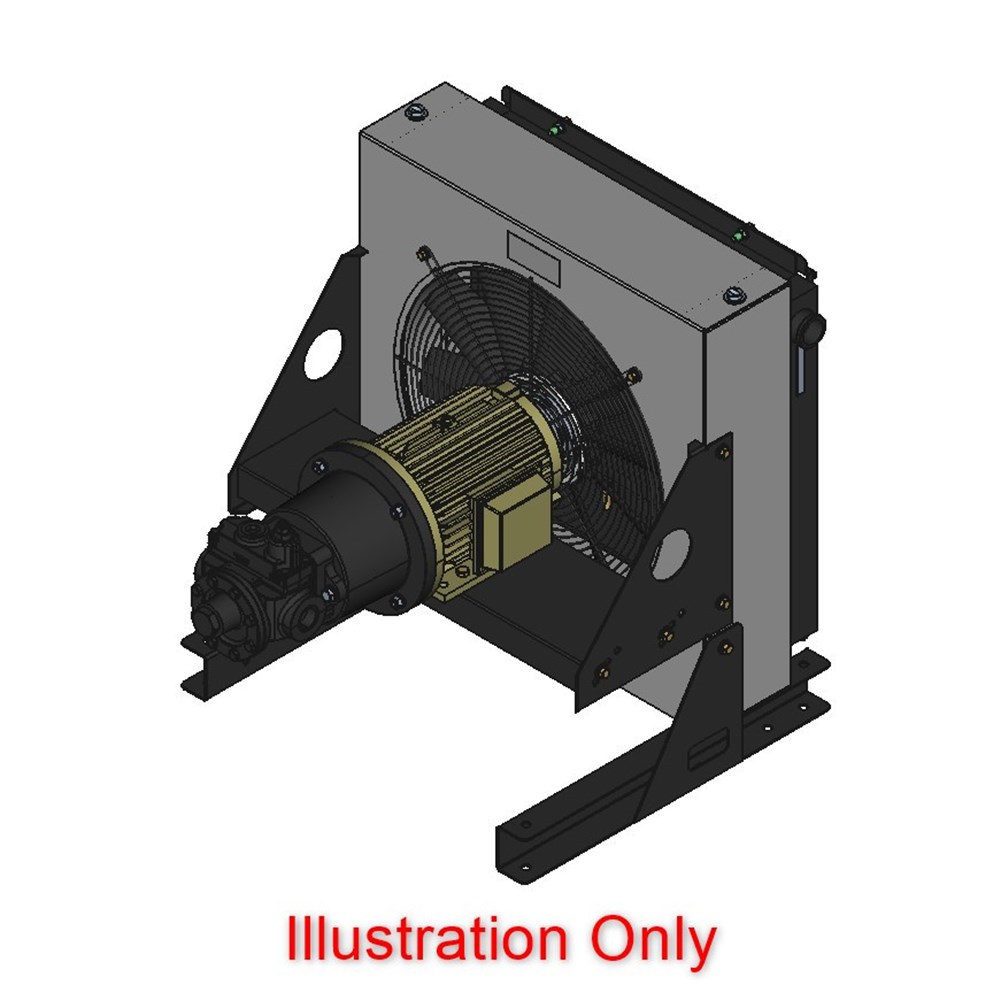

AIR COOLED Heat Exchanger DC DC32Y 415V 3Phase 50Hz 4Pole 630mm Fan & 40UR 125l/min Pump

Product Code: DC32YH6AC4HP125

In Stock Low Stock Contact for Availability Please See Attributes
Enquire
Technical Specifications
Description of part Air cooled Heat Exchanger
Series DYNACOOL with Coaxial Pump
Model DC32
Cooling Element Type Aluminium Hi Flow 65mm Operating Pressure 20 Bar
Port Orientation Hoizontal
Fan Diameter 630 mm
Drive Type 3 Phase 415v Electric Motor
Motor/Fan Speed 4 Pole Nom 1450 rpm at 50Hz
Cooler Pump Type Haight Pump
Cooler Pump Flow Rate 125 L/min
Noise Level dBA at 1m 89 DBA
Weight of Item 150.0 KG
Qty Each (inc GST) Each
Spare Parts
COOLING ELEMENT Aluminium DC32Y replacement 20 Bar 1 1/4" BSPP 800 x 801 x 65mm
COOLING ELEMENT Aluminium DC32Y replacement 20 Bar 1 1/4" BSPP 800 x 801 x 65mm 1E2927 In Stock In Stock Contact for Availability Please See Attributes 1
$4051.30 (Each)
Increase value Decrease value
HAIGHT PUMP 40UR Relief Valve 89.70CC with Mechanical Seal CCW Rotation for Pump Coolers
HAIGHT PUMP 40UR Relief Valve 89.70CC with Mechanical Seal CCW Rotation for Pump Coolers 40UR010MA In Stock In Stock Contact for Availability Please See Attributes 1
$5930.10 (Each)
Increase value Decrease value
M38 Flexible Coupling 28mm Bore 8mm Key
M38 Flexible Coupling 28mm Bore 8mm Key GM38/75 In Stock In Stock Contact for Availability Please See Attributes 1
$128.70 (Each)
Increase value Decrease value
M38 Nylon Element White with 44 Teeth
M38 Nylon Element White with 44 Teeth GM38/E In Stock In Stock Contact for Availability Please See Attributes 1
$89.10 (Each)
Increase value Decrease value
M38 Flexible Coupling 7/8" Bore 3/16" & 1/4" Key
M38 Flexible Coupling 7/8" Bore 3/16" & 1/4" Key GM38/14 In Stock In Stock Contact for Availability Please See Attributes 1
$128.70 (Each)
Increase value Decrease value
