AC Electric Drive with Axial Pump

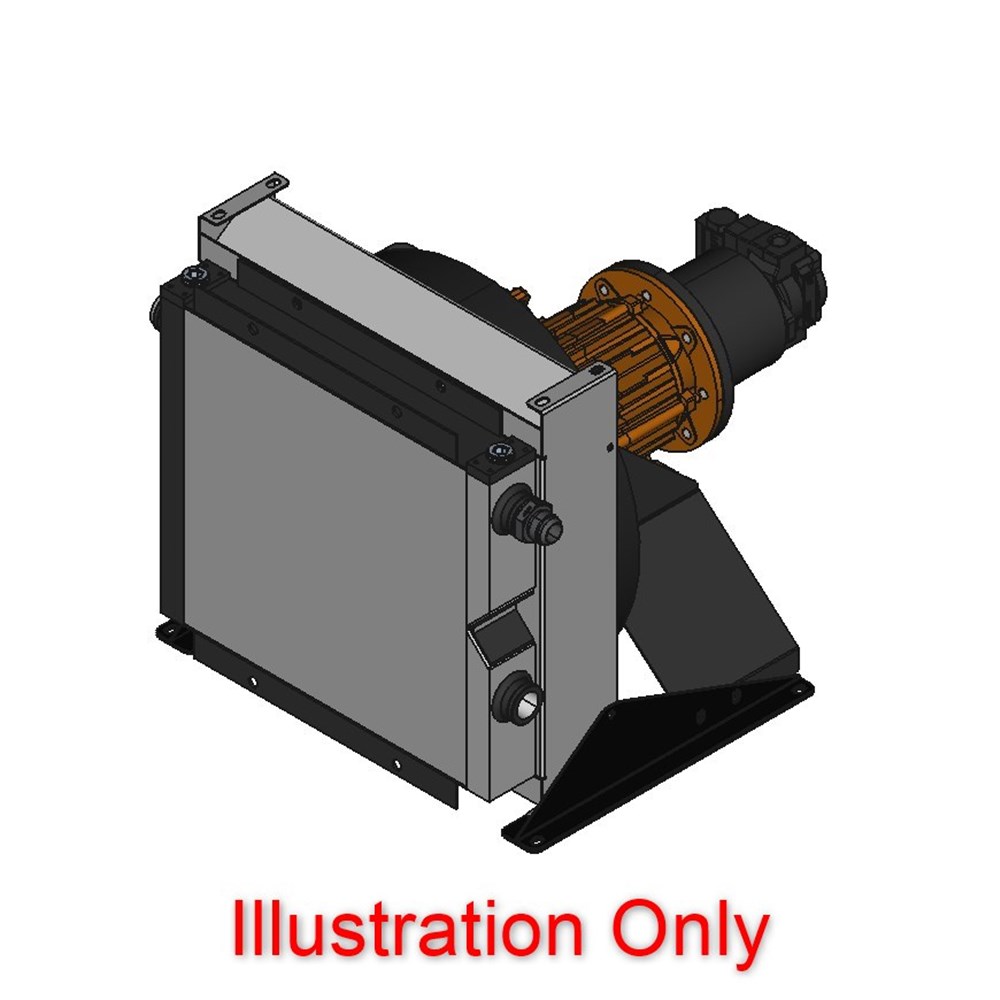

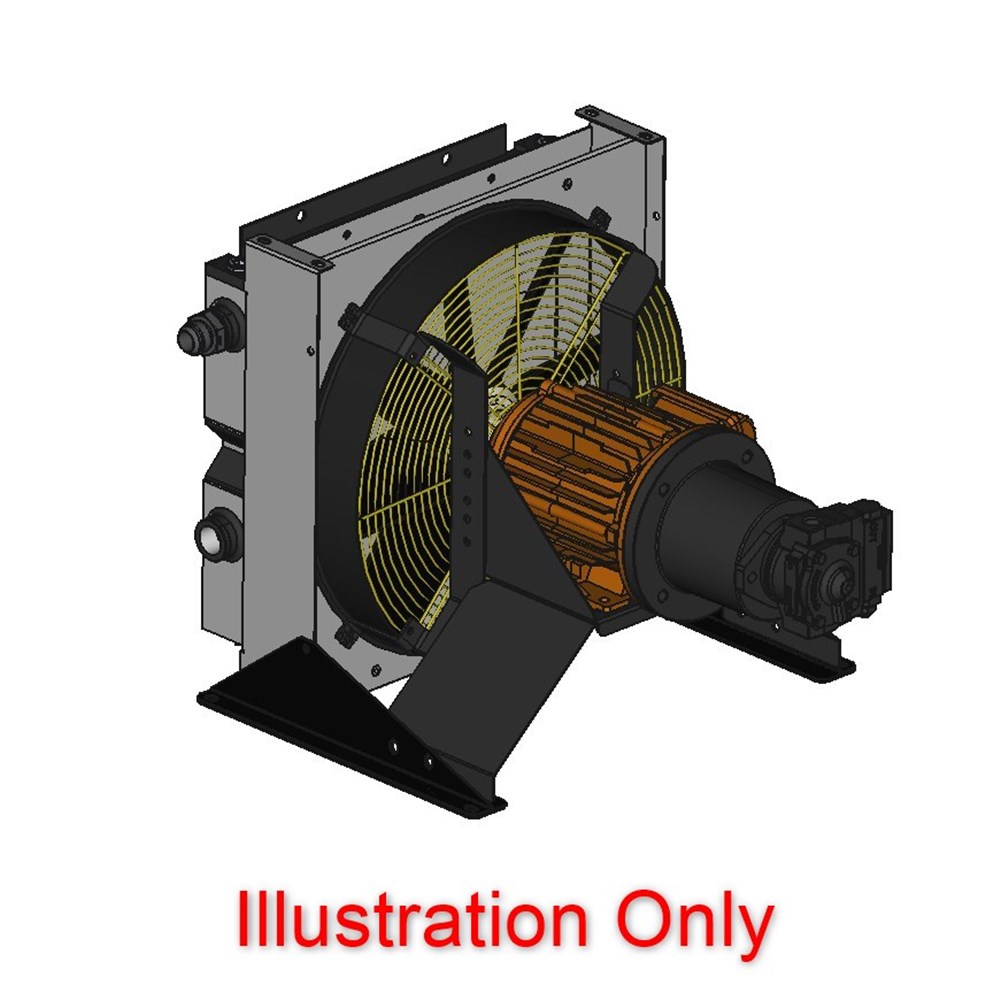

AIR COOLED Heat Exchanger VC VCL4X 415V 3 Phase 50Hz 4Pole With GR40 40l/min Pump

Product Code: VCL4XAC4GR40

In Stock Low Stock Contact for Availability Please See Attributes
Enquire
Technical Specifications
Description of part Air cooled Heat Exchanger
Series VERSACOOL with Coaxial Pump
Model VCL4
Cooling Element Type Aluminium Hi Flow 65mm Operating Pressure 20 Bar
Port Orientation Hoizontal
Fan Diameter 305 mm
Drive Type 3 Phase 415v Electric Motor
Motor/Fan Speed 4 Pole Nom 1450 rpm at 50Hz
Cooler Pump Type Settima Pump
Cooler Pump Flow Rate 40 L/min
Noise Level dBA at 1m 71 DBA
Weight of Item 42.0 KG
Qty Each (inc GST) Each
Spare Parts
COOLING ELEMENT Aluminium VC4X replacement 20 Bar 1" BSPP 295 x 330 x 65mm
COOLING ELEMENT Aluminium VC4X replacement 20 Bar 1" BSPP 295 x 330 x 65mm 18/07804 In Stock In Stock Contact for Availability Please See Attributes 1
P.O.A. (Each)
​
