ENGINEERED LUBRICATION AND COOLING SOLUTIONS
Custom Lube Oil Systems and Cooling Modules
Industrial gearbox overheating can reduce oil life, accelerate component wear and lead to unplanned downtime.
OEM Dynamics designs and builds complete lube oil systems that circulate, filter and cool oil in one integrated package. Every system is engineered around your equipment, operating conditions and project requirements.
Custom designed. Australian engineered and assembled. Supported by one supplier.
Protect Your Gearbox with One Integrated System
A lube module combines the three essential functions required to protect an industrial gearbox or other lubricated asset.
Oil Circulation
Maintains the required oil flow through the gearbox and lubrication circuit.
Oil Filtration
Removes contamination to help maintain oil cleanliness and protect internal components.
Heat Removal
Controls oil temperature to help maintain lubricant performance and equipment reliability.
Instead of coordinating separate suppliers for the cooler, pump, motor, filters, valves, instrumentation, fabrication and pipework, OEM Dynamics can combine these components into one fully assembled system.
The result is a complete package designed to meet the performance, maintenance and site requirements of your application.
Request an Engineered Solution
.
One Supplier. One Integrated Solution.
From initial concept through to the completed package, OEM Dynamics brings the individual components together as one engineered system.
Reduce Project Complexity and Lead Time
A conventional lube oil system may involve multiple suppliers, each responsible for a different part of the project. This can create longer lead times, additional engineering interfaces and uncertainty about responsibility when support or replacement parts are required.
OEM Dynamics has extensive experience supplying heat exchangers, oil pumps, pump-and-motor packages, filtration equipment, valves, controls and cooler accessories.
We combine these proven components with custom fabrication, pipework, instrumentation and customer-specified equipment to create a complete solution from one supplier.
Depending on project scope and component availability, some systems can progress from concept to completed package in under six weeks.
Complete Package
Cooling, filtration, oil circulation, monitoring and protection integrated into one assembled system.
Custom Engineered
Designed around the oil, flow rate, temperatures, heat load, operating environment and performance requirements of your equipment.
Reduced Complexity
One supplier coordinates component selection, engineering, assembly & testing, reducing the number of suppliers your project team manage.
Local Support
Australian-based engineering, manufacturing support and access to replacement components when they are required.
What Is a Custom Lube Oil System?
A custom lube oil system is an engineered package that circulates, filters and conditions lubricating oil for industrial gearboxes, bearings and other rotating equipment.
Maintaining clean oil at the correct operating temperature and pressure helps protect internal components, maintain lubricant performance and support reliable equipment operation.
Unlike a fixed, off-the-shelf product, each OEM Dynamics system is configured around the actual duty and installation requirements of the project.
Design Inputs We Consider
- Machinery and application
- Oil type and viscosity
- Current oil temperature
- Required return-oil temperature
- Required oil flow rate
- Heat load to be removed
- Allowable system pressure
- Allowable pressure drop
- Ambient air or cooling-water conditions
- Filtration and cleanliness requirements
- Available electrical supply
- Monitoring and control requirements
- Installation footprint
- Corrosion and environmental conditions
- Customer and site specifications
Components We Can Integrate
Each package can be configured using proven OEM Dynamics products, selected third-party equipment and customer-specified components.
Built for Industrial Applications
Custom lube oil systems can be designed for industrial gearboxes, crushers, mills, conveyors, mechanical drives, compressors, marine equipment, processing plant and other equipment requiring controlled oil circulation, filtration and cooling.
Systems can be configured with air-cooled or water-cooled heat exchangers and mounted on a fabricated frame or skid to suit the available installation space.
Each package can incorporate standard OEM Dynamics products, selected third-party equipment and customer-specified components.
 ```

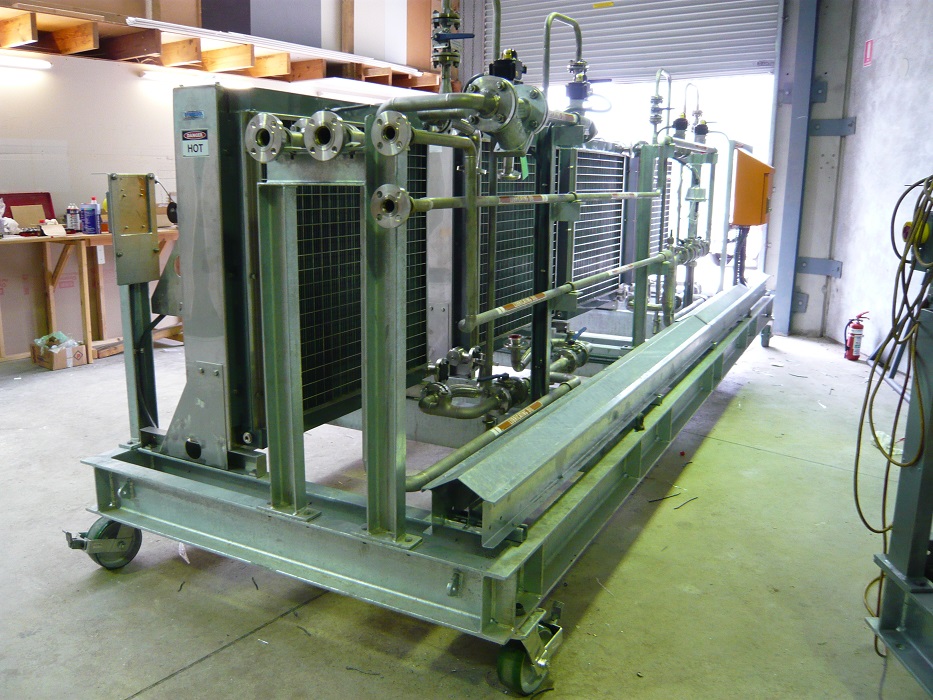

Gearbox Cooling and Filtration Package
```
 ```
Custom-Engineered Lube Oil Module
Integrated Pump, Cooler and Control System
```
Engineered Around Your Application
We combine standard, proven components with application-specific engineering to deliver a complete lube oil system that is easier to install, operate and maintain.
Matched to the Duty
Performance selected around the actual heat load, oil flow, temperatures and operating conditions.
Fewer Site Interfaces
Cooling, pumping, filtration, monitoring and fabrication are coordinated as one package.
Simplified Installation
Components can be assembled, piped and mounted before the package reaches site.
Ongoing Support
One supplier for technical assistance, replacement components and future system requirements.
STANDARD COMPONENTS. CUSTOM-ENGINEERED PACKAGE.
Heat Exchangers
Dynacool air-cooled or water-cooled heat exchangers selected to remove the required heat while meeting oil-flow and pressure-drop limits.
Pumps and Motors
Oil pumps and drive motors sized to provide the required circulation flow, system pressure and reliable operation for the application.
Filtration
Single or duplex filtration systems selected to achieve the required oil cleanliness, contamination control and maintenance arrangement.
Tanks and Reservoirs
Custom oil tanks, reservoirs, breathers, level indicators and monitoring equipment can be incorporated where required.
Valves and Bypass Protection
Thermal, pressure and flow-control valves can protect system components and manage oil through the cooling and filtration circuit.
Instrumentation and Sensors
Pressure gauges, temperature gauges, switches, transmitters and filter-condition indicators can be included in the package.
Pipework, Hoses and Frames
Pipework, fittings, flexible hoses, drip trays, protective screens and fabricated mounting frames can form part of the completed package.
Controls and Special Requirements
Electrical controls, site-monitoring connections, special coatings, stainless-steel construction and customer-specified components can be incorporated.

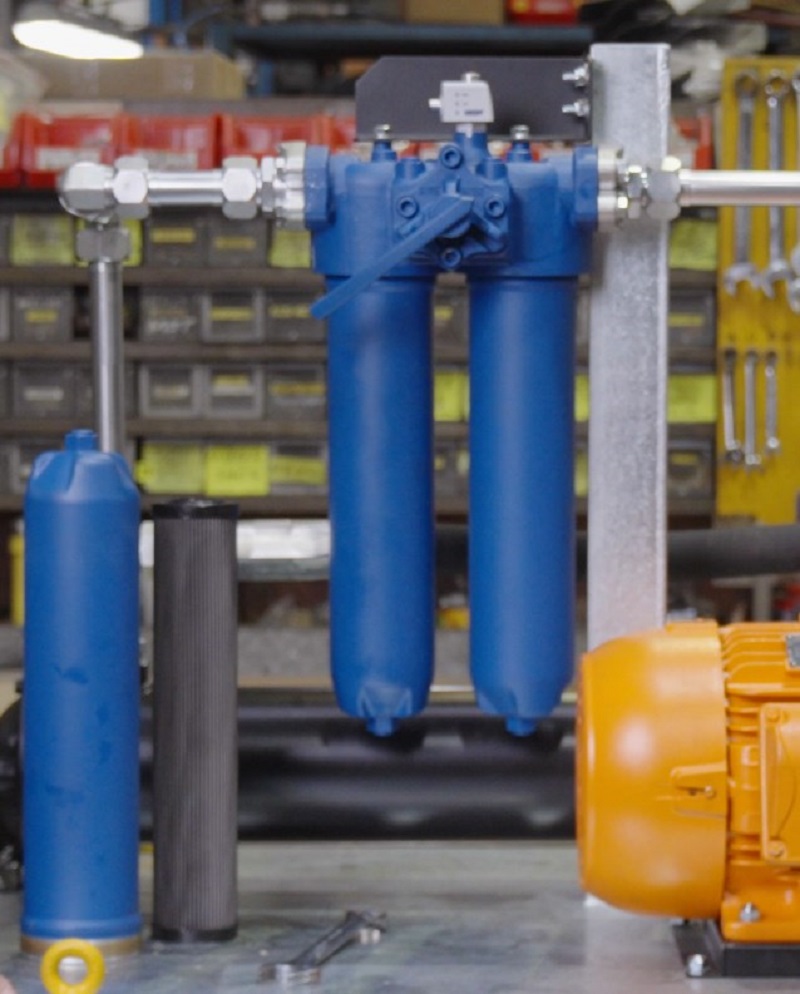

Duplex Filtration for Continuous Operation
One filter housing can remain in service while the other is isolated for inspection, cleaning or filter-element replacement.
Maintainable Duplex Filtration
Duplex filtration can allow one filter housing to be isolated while oil continues to circulate through the second housing.
This arrangement can enable a filter element to be inspected, cleaned or replaced without stopping the complete lubrication system.
Visual and electronic filter-condition indicators can also be included. Electronic signals can be connected to the site control system to provide notification when maintenance is required.
System Protection and Temperature Control
Pressure-bypass arrangements can help protect the pump and heat exchanger if the oil is cold, highly viscous or flow through the cooling circuit becomes restricted.
For water-cooled systems, a water-modulating valve can regulate cooling-water flow according to oil temperature.
This allows the heat exchanger to cool when required while helping maintain a consistent oil temperature returning to the gearbox.
The final protection and control arrangement is selected to suit the operating requirements of each application.

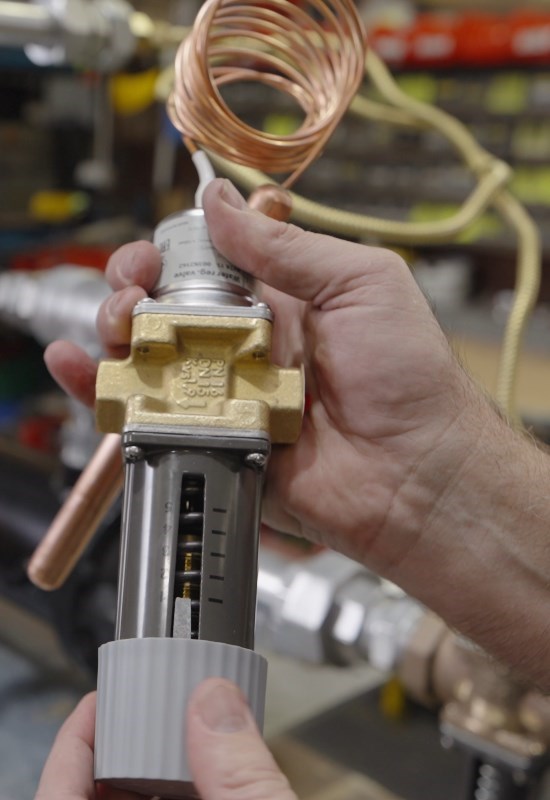

Water-Modulating Temperature-Control Valve
1
Application Review
We review the equipment, existing operating conditions and the problem the system must solve.
2
System Specification
Required flow, temperature, filtration, controls, materials and site interfaces are defined.
3
Engineering and Selection
The cooler, pump, motor, filtration, valves, instrumentation and supporting components are selected.
4
Assembly and Testing
The package is fabricated, assembled, piped and checked before delivery.
5
Delivery and Support
The completed system is supplied with ongoing access to technical support, spare parts and replacement components.
FAQ – Custom Lube Oil Systems
What information is required to design a custom lube oil system?
Useful information includes the equipment or gearbox type, oil grade and viscosity, required oil flow, current and desired oil temperatures, heat load, operating pressure, ambient conditions, filtration requirements, electrical supply and available installation space.
Where some operating data is unavailable, OEM Dynamics can help identify the information required to assess the application.
Can OEM Dynamics incorporate customer-specified components?
Yes. A custom system can incorporate nominated pumps, filters, sensors, controls, valves or other customer-specified equipment, subject to technical review and suitability for the application.
OEM Dynamics can also combine these items with Dynacool heat exchangers, oil pumps, tanks, fabricated frames, pipework and instrumentation.
Are custom lube oil systems supplied fully assembled?
Systems can be supplied as complete assembled packages incorporating the selected cooler, pump, motor, filtration, valves, instrumentation, pipework and fabricated frame.
The exact scope is agreed for each project and may range from a basic pump-and-cooler package to a fully integrated lubrication, filtration and temperature-control system.
Can filters be serviced without shutting down the lubrication system?
A duplex filtration arrangement can allow oil to continue flowing through one filter housing while the second housing is isolated for inspection, cleaning or filter-element replacement.
Whether duplex filtration is required will depend on the equipment duty, maintenance requirements and the consequences of shutting down the lubrication system.
How long does a custom lube oil system take to design and manufacture?
Lead time depends on the engineering scope, component availability, fabrication requirements and customer approval process.
For suitable projects, OEM Dynamics may be able to progress from concept to a completed package in under six weeks. The expected delivery timeframe will be confirmed during quotation.
Can the system use an air-cooled or water-cooled heat exchanger?
Yes. The cooling method is selected according to the heat load, oil flow, ambient conditions, available cooling water, installation space and site requirements.
OEM Dynamics can incorporate Dynacool air-cooled or water-cooled heat exchangers into the completed package.
Can the lube oil system connect to existing site controls?
Yes. Pressure, temperature, oil level, flow and filter-condition sensors can be incorporated where required.
Signals from switches and transmitters can be configured for connection to the customer’s PLC, control panel or site-monitoring system, subject to the agreed project scope.
Can the system be manufactured for corrosive or demanding environments?
Systems can be configured with stainless-steel components, galvanised or painted frames, special coatings, protective screens and other material or finish requirements.
The final construction is selected according to the installation environment, corrosion exposure and customer specification.
Can OEM Dynamics upgrade an existing lubrication or cooling system?
Yes. OEM Dynamics can assess an existing system where gearbox oil temperature, filtration performance, oil flow or reliability requires improvement.
The solution may involve replacing individual components or designing a new integrated package, depending on the condition and suitability of the existing equipment.
What testing and documentation can be provided?
The testing and documentation supplied will depend on the project scope.
This may include component data, drawings, system specifications, inspection records and agreed functional or pressure checks before delivery. Required documentation should be identified during the quotation stage.
