• Dynacool

Dynacool

The Dynacool division of OEM Dynamics specialises in the supply of air cooled and water-cooled heat exchangers for cooling oil in most applications including fluid power, mechanical gear and transmission drives, air compressors, scoop couplings, engine oil and process oil cooling. The Dynacool division is recognised as being the largest supplier of heat exchangers for oil cooling applications in Australia.

The Dynacool range is our air-cooled package heat exchangers manufactured at our Ballina facility. The range comprises of general-purpose oil cooling types with aluminium matrix and special application coolers utilising a steel matrix for underground coal mines applications.

Other air cooled heat exchangers are available for mobile equipment, add-on hydraulic oil coolers for transit mixers. construction equipment, agricultural machinery and automotive engines or transmission oil cooling.

Dynacool is a major supplier of water-cooled shell and tube heat exchangers. These include units suitable for most industries including marine applications.

Other products from Dynacool include special valves and controls for oil cooling applications and rotary gear oil pumps for lubrication systems.

These products are Australian made and produced at our factory in Ballina NSW.

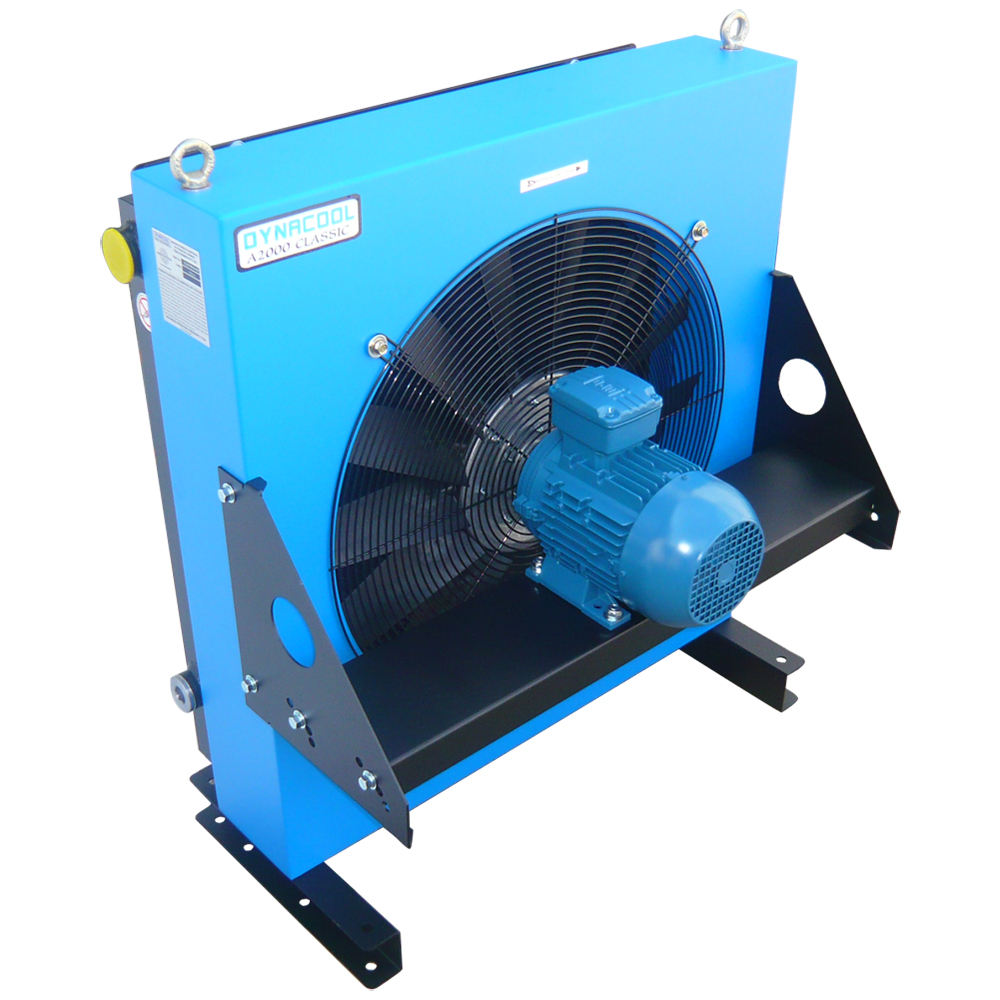

Dynacool DC Airblast Heat Exchangers

Available in over 30 standard model variants. Made with high performance aluminium cooling elements and heavy duty zinc seal powder coated casings for excellent appearance and durability. Stainless steel casing available on request. Available in most AC voltages, 50 & 60 Hz, hydraulic and air motor drive. Also used for air aftercooling applications.

Performance to 9.0 kw/ºC, flows to 800 L/min.
DYNACOOL coolers

Dynacool VT Vertical Discharge Tower

Developed for very large oil cooling applications in high ambient conditions. The VT series are equipped with multiple cooling elements manifolded for parrallel oil flow.

Performance to 17 kw/ºC, flows to 1600 L/min.

Versacool VC Airblast Heat Exchangers

Available in 6 models with 22 different fan motor variants from AC electric (single or three phase, 50 or 60 Hz and 240 through 450 V), Hydraulic or Air motors. The design delivers more air flow resulting in greater performance using a smaller fan, lower noise and eliminating recycling of heated air through the matrix.

Performance to 0.8 kw/ ºC, flows to 200 L/min

VERSACOOL coolers

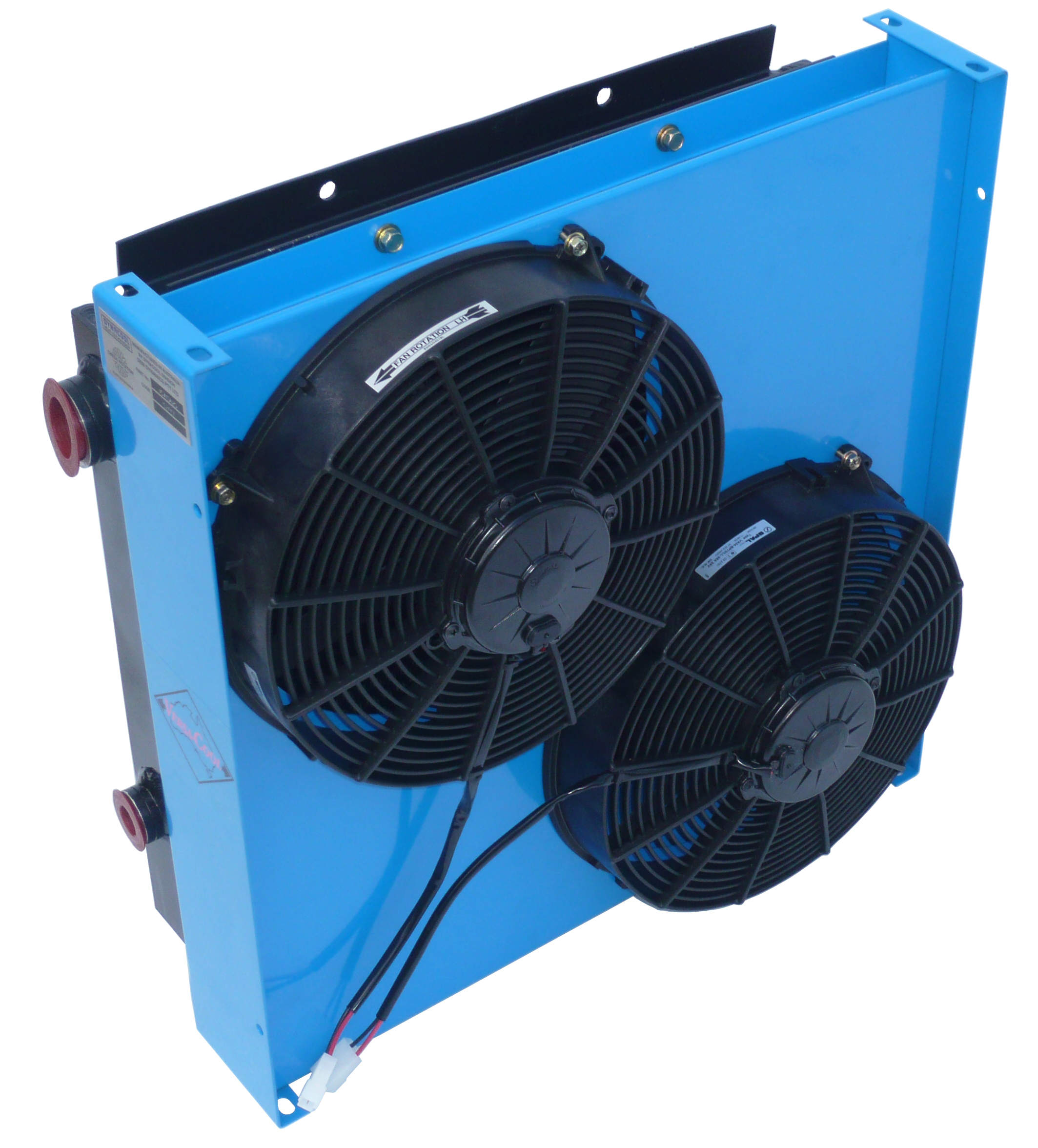

Versacool Mobile Airblast Heat Exchangers

Available in 6 basic models with 19 different electric motor variants in 12 or 24 volt DC. Proven long life water resistant fan motors in high performance or low amp/noise types. Cooling elements with operating pressure to 14 Bar.

Performance to 0.5 kw/ºC, flows to 150 L/ min.

Low Voltage Coolers

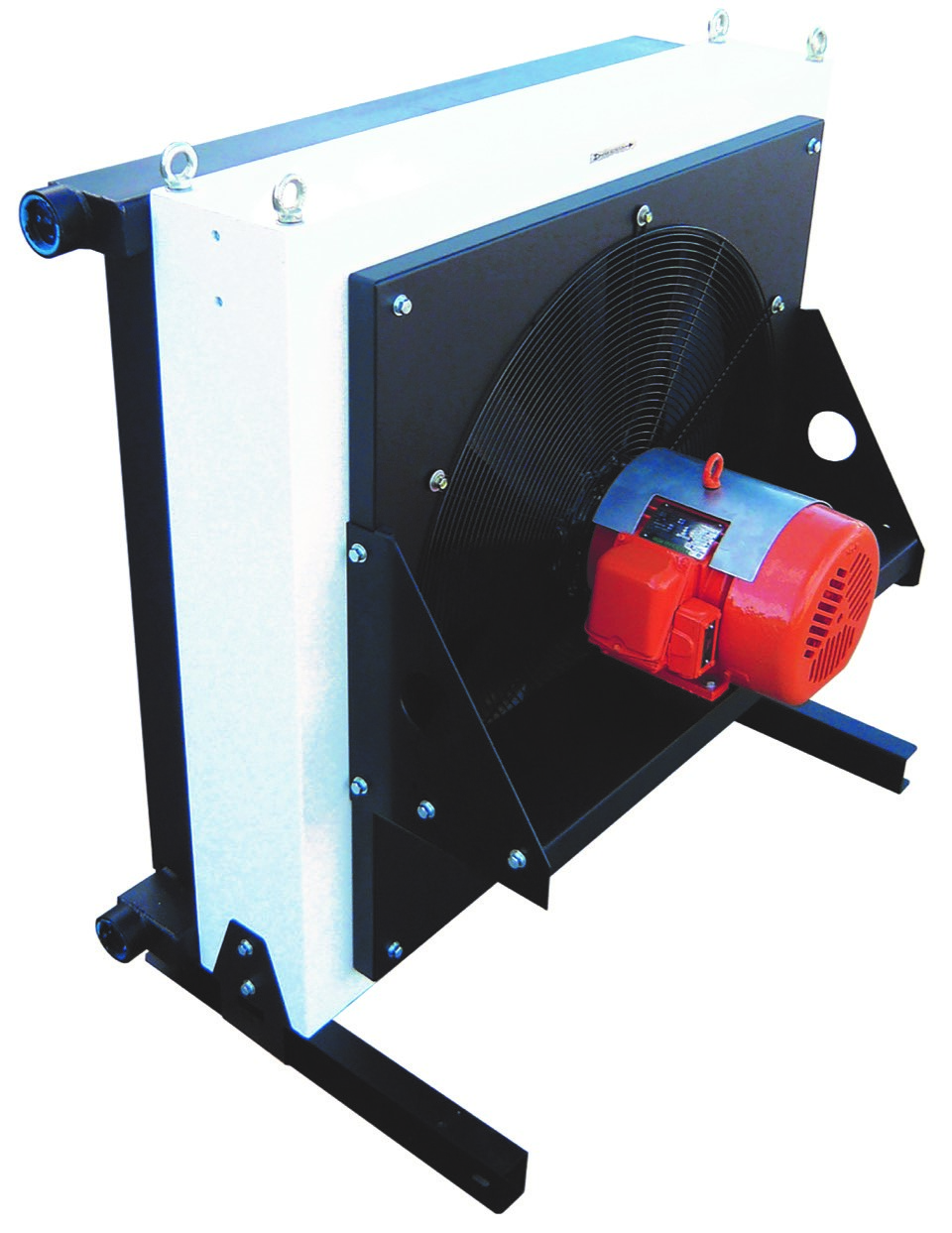

Dynacool ST Steel Core Airblast Heat Exchangers

Available in 4 models. ST series feature heavy duty cooling elements with steel fins, rectangular steel tanks and copper tubes or elements. ideal for low air side clogging applications or for the special requirements of underground coal mines. Available with standard or antistatic fans and flame proof electric motors for intrinsically safe applications.

Performance to 2 kw/ºC, flows to 540 L/min.
DYNACOOL ST coolers

Dynacool Aluminium and Steel Cooling element/cores

High performance Aluminimium brazed plate elements/cores of oil, air and water cooling applications. Heavy duty open fin elements/ cores with either steel or aluminium fins for dirty/dust environments where air side fin clogging is an issue.

DYNACOOOL Aluminium cores
Steel cores

Dynacool HC & B Series Industrial & Marine Shell & Tube Heat Exchangers

Industrial units for all general oil, air or water cooling applications where a conventional exchanger is required. Marine units available for marine oil cooling or marine jacket water cooling. Special materials such as 90/10 Cu Ni & bronze are used for all surfaces in contact with sea water.

B series

Dynacool EKM & ECM Extended Surface Shell & Tube Heat Exchangers

Extended surface tube bundles ensure high heat transfer capacity in small overall size and minimising required water flow. All models now available with “surge relief” mechanism. 90/10 Cu Ni tube materials now standard for stocked range ensuring good service life even if fresh water quality is poor.

EKM Performance to 200 kw, Oil flows to 200 L/min.
ECM Performance to 400 kw, Oil flows to 700 L/min.

EKM coolers
ECM coolers

Dynacool WM High Performance Marine Shell & Tube Heat Exchangers

Extended surface tube bundle with Stainless Steel tube sheets, 90/10 Cu Ni tubes and stainless steel end bonnets.

W coolers

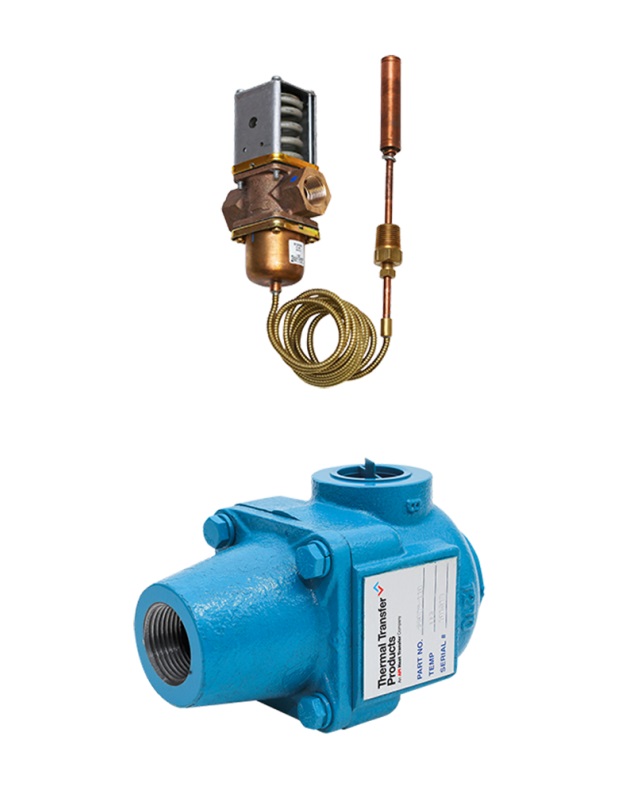

Accessories

Thermoswitches for DC or AC motors, thermostatic valves for cold/hot oil flow diversion, cooler mounting brackets, water flow modulating valves & bulb wells to regulate water flow, strainers to minimise foreign material flowing into heat exchanger.

DYNACOOL Accessories

We are specialists in the manufacture & servicing of Power Transmission and Heat Transfer products.

We offer solutions from minor repairs through to complete overhauls.
