Splined Components
Hubs
PRECISION SPLINE HUB 14T 1 1/4" 12/24 SAE C
Hubs
Zoom

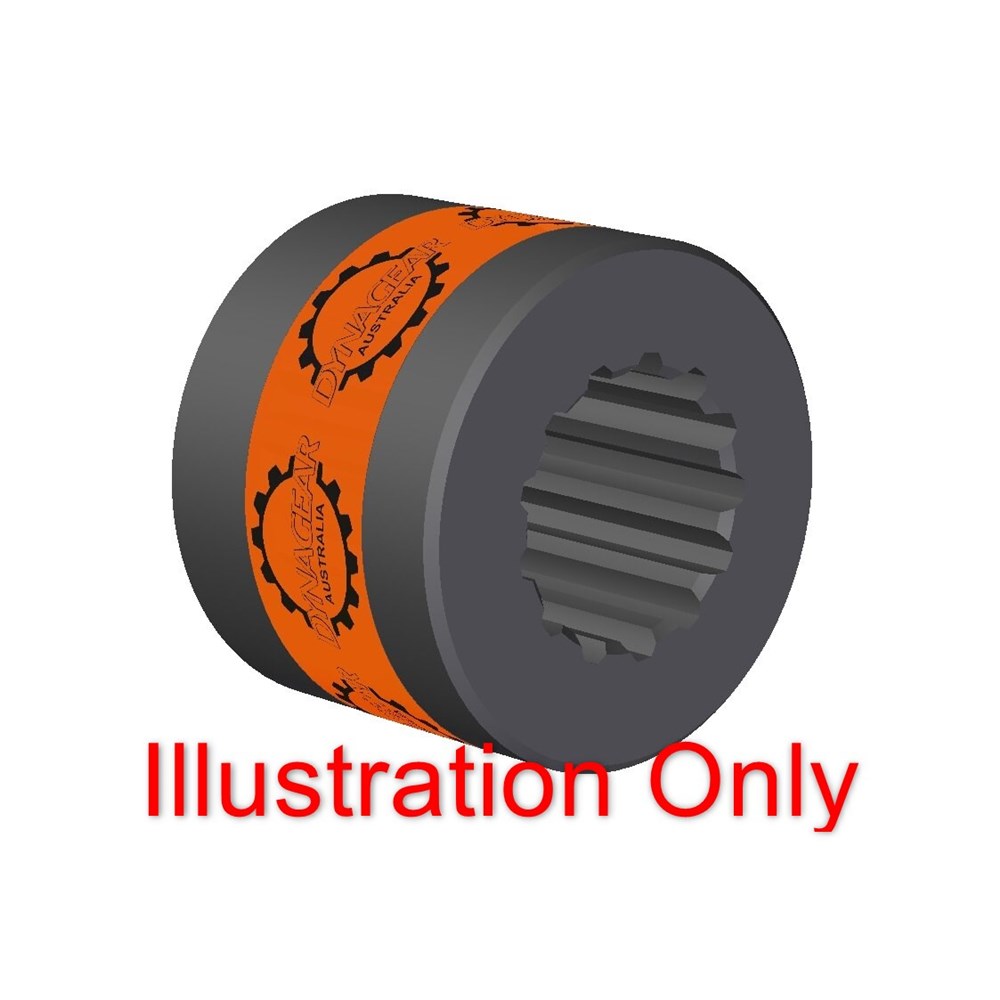

PRECISION SPLINE HUB 14T 1 1/4" 12/24 SAE C
Product Code: 94/50006
In Stock
Low Stock
Contact for Availability
Please See Attributes
$162.80
inc GST
Increase value
Decrease value
Add to cart
Technical Specifications
Description of part
Precision Spline Hub
Metric or Imperial System
Imperial Measurements
OEM Bore and shaft code register
6
No of Teeth
14
Nominal Spline Outside Diameter
1.250 IN
Specification of the spline
12/24 DP INVOLUTE CLASS 5
Origin or Standard
Imperial ANSI spline
Part overall length
2.000 IN
Part Outside Diameter
2.250 IN
Known Uses for this part
Hydraulic SAE C Spline
