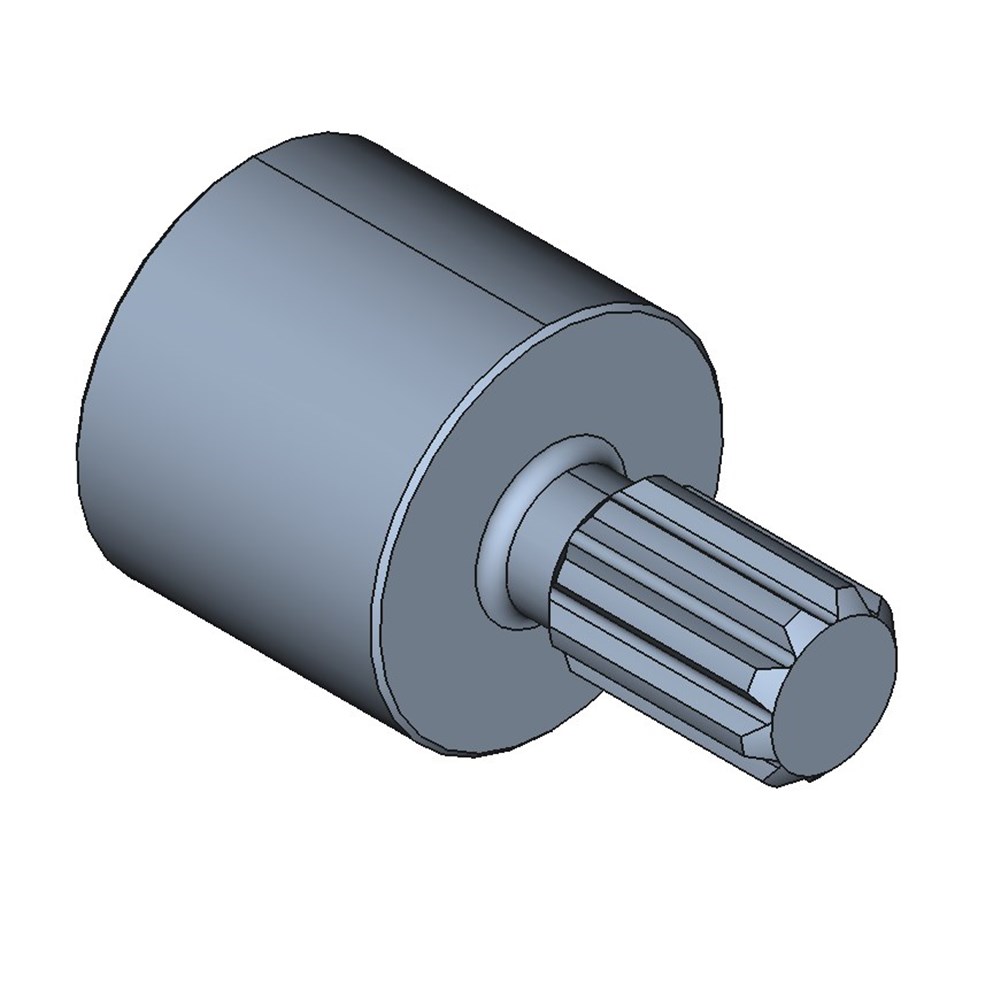

SPLINE STUBWELD 9T 5/8" 16/32 SAE A

Product Code: 76/70001

In Stock Low Stock Contact for Availability Please See Attributes
$300.30 inc GST
Increase value Decrease value
Technical Specifications
Description of part Splined Stubweld
Metric or Imperial System Imperial Measurements
OEM Bore and shaft code register 1
No of Teeth 9
Nominal Spline Outside Diameter 0.625 IN
Specification of the spline 16/32 DP INVOLUTE CLASS 5
Origin or Standard Imperial ANSI spline
Part overall length Metric 58.00 MM
OD of butt end 34.92 MM
Length of spline 22.00 MM
Length of spline to shoulder 28.00 MM
Known Uses for this part HYDRAULIC SAE A Spline
