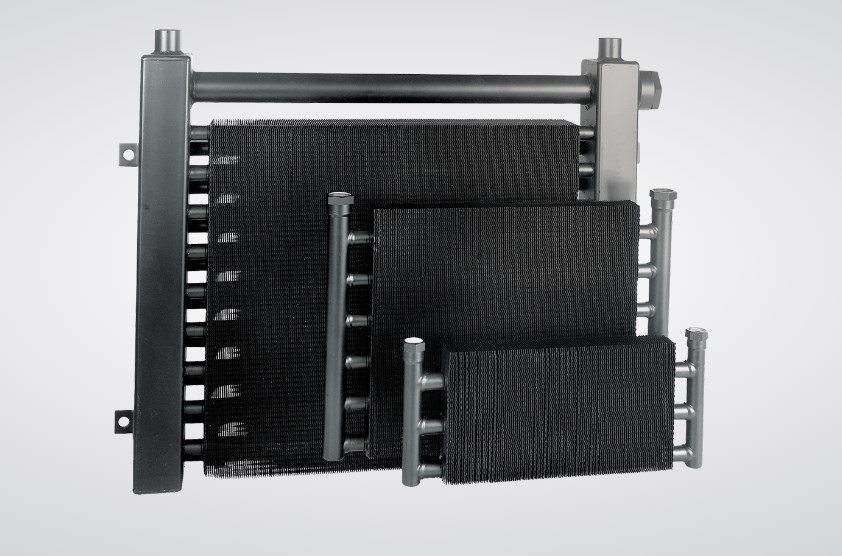

DF Series


Mobile air cooled Copper Tube / Aluminium Fin
The DH Series is a low cost, high performance mobile core that is an excellent choice for radiator face mount fuel or transmission cooling.  This series features moderate flows, high heat removal and an optional internal pressure bypass for cold start-up protection.  Material options are also available including steel tanks and steel fins for rugged off-highway applications.  Aggressive turbulators allow for optimal heat rejection at lower flow rates.

Feautures

• Hayden interchange
• High strength construction
• Rugged steel manifolds
• 3/4″ Copper tube size
• Aluminum or Steel fins
• Eliminate piping, reduce cost with optional internal pressure bypass
• Mounting brackets included

Ratings

• Maximum Operating Pressure 300 PSI
• Test Pressure – 300 PSI
• Maximum Operating Temperature 350°F
• Heat Rejection up to 70 HP (52 KW)
• Oil Flow up to 150 GPM (330 LPM)

Materials

• Tubes – Copper
• Fins – Aluminum / Steel
• Turbulators – Aluminum
• Manifolds – Copper (DH-051 – DH-447), Steel (DH-513 – DH-670)
• Connections – Brass (DH-051 – DH-447), Steel (DH-513 – DH-670)

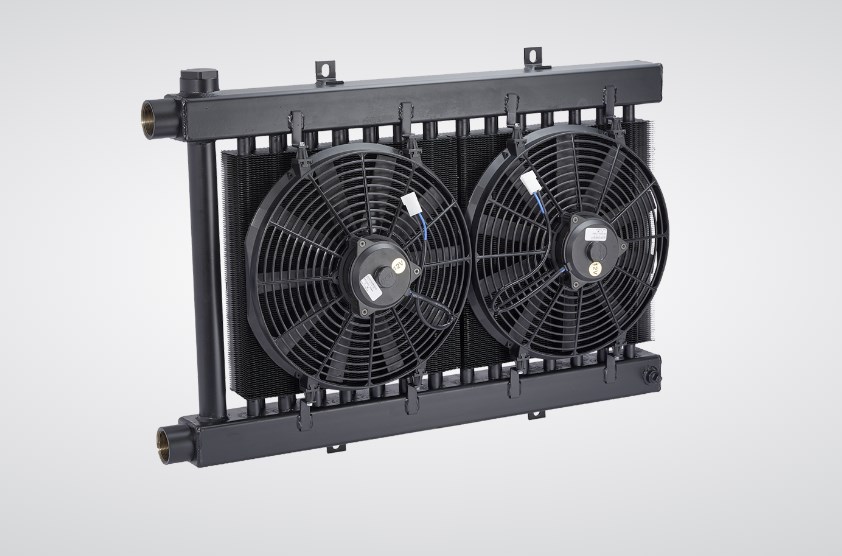

DFM Series

Mobile Air Cooled Copper Tube/Aluminum Fin Core

The Mobile DFM Series is ideal for very rugged applications, with a robust design that includes steel tanks and damage-resistant steel fins.  This series features moderate flows, high heat removal and an optional serviceable internal pressure bypass.  Though similar to the DH Series, the DF incorporates long-life DC fans.

Feautures

• Similar to DH with DC fan
• Heavy duty construction for rugged applications
• Steel manifolds
• Damage resistant steel fins
• 3/4″ tube size
• SAE or NPT oil connections
• Low amp draw 12 or 24 V DC motors
• Long life hydraulic motors
• Mounting brackets included

Product Options

• Fan control switch
• Serviceable internal pressure bypass

Ratings

• Maximum Operating Pressure 300 PSI
• Maximum Operating Temperature 350°F
• Heat removal up to 35,000 BTU/HR
• Oil flows up to 110 GPM

Materials

• Tubes – Copper
• Fins – Steel
• Turbulators – Steel
• Manifolds – Steel
• Fan Assembly – High Impact Plastic

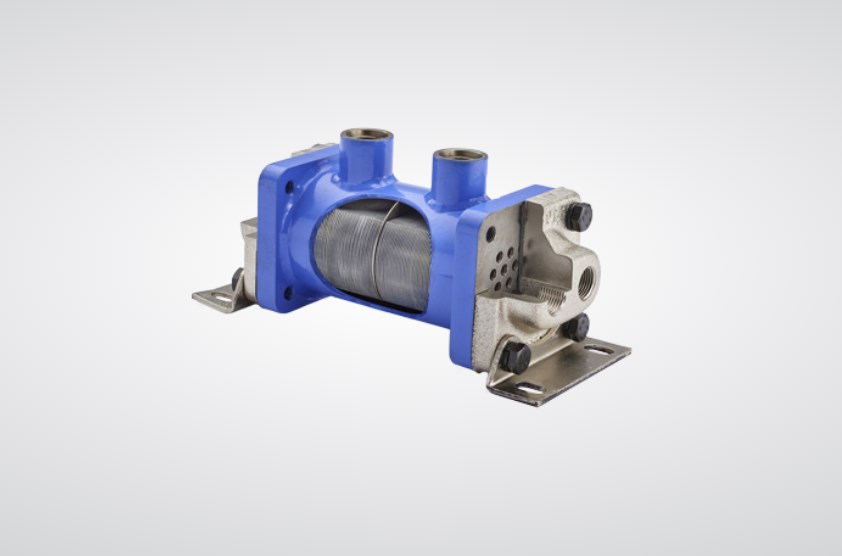

EK Series

Finned Tube Bundle Shell & Tube Water to Oil Cooling

The EK Series – the ‘Green’ cooler – is the most efficient heat exchanger offered in the water cooled series.  The aluminum finned tube bundle design provides an increased surface area that allows for optimal heat rejection with low water usage.  An optional Surge-Cushion^® bypass is available for cold start up protection or flow surges.  Sea water service options are also available.  The low cost, compact design is ideal for general purpose hydraulic power unit installations.

Feautures

• Compact size
• Interchangeable with TTP K Series
• 3/16″ tube size
• High pressure ratings
• End Bonnets Removable for Servicing
• Mounting Feet Included (May be rotated in 90° increments)
• Sea water applications, end model code with CN-W-NP

Product Options

• Patented built-in Surge-Cushion bypass
• Cooling Tube Side Material Options incl Standard Steel, Copper Nickel or Stainless Steel
• Multiple Connection Options

Ratings

• Maximum Operating Pressure – Shell Side 500 PSI
• Maximum Operating Pressure – Tube Side 150 PSI
• Maximum Operating Temperature 250°F
• Heat removal up to 400 HP (300 KW)
• Oil flow rates up to 80 U.S. GPM (300 L/MIN)
• Maximum viscosity – 150 cSt

Materials

• Tubes – Copper/Copper Nickel
• Tube Sheets – Steel/Copper Nickel
• End Bonnets – Cast Iron/Electroless Nickel Plate
• Shell – Steel
• Baff les – Steel
• End Bonnets – Cast Iron
• Mounting Brackets – Carbon Steel
• Gaskets – Nitrile Rubber/Cellulose Fiber
• Nameplate – Aluminum Foil

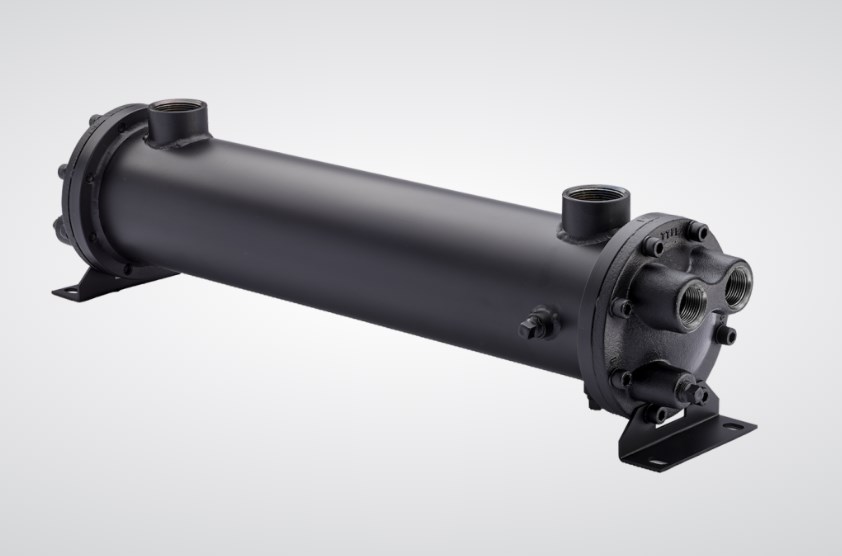

ECM Series

Finned Tube Bundle Shell & Tube Water to Oil Cooling

The EC Series – the Green Cooler – is the larger higher performance version of the EK series featuring the same style finned tube bundle core design.  The finned bundle offers the best efficiency to optimize water usage.  The larger sizes can handling flows up to 250 GPM.  The aluminum finned tube bundle design provides an increased surface area that allows for optimal heat rejection with low water usage.  An optional Surge-Cushion^® bypass is available for cold start up protection or flow surges.  With multiple material options to choose from, this series can used in a wide variety of applications.

Feautures

• Rugged steel shell construction
• 3/8″ tube size
• 5” to 8.5″ shell diameters
• High flow capacity & performance
• High efficiency finned bundle design
• End bonnets removable for easy tube cleaning
• Mounting brackets included (may be rotated in 90° increments)

Product Options

• Patented built-in Surge-Cushion bypass
• Type 316 stainless steel, Bronze, or 90/10 copper-nickel components on Tube Side
• Multiple Connection Options

Ratings

• Maximum Operating Pressure – Shell Side 300 PSI
• Maximum Operating Pressure – Tube Side 150 PSI
• Maximum Operating Temperature 300°F
• Heat Rejection up to 600 HP (448 kW)
• Flow Range from 10 – 225 GPM (22 to 495 LPM)
• Maximum Viscosity – 150 cSt

Materials

• Shell – Steel
• Tubes – Copper / Copper Nickel / Stainless Steel
• End Bonnets – Cast Iron / Bronze / Stainless Steel
• Tubesheets – Steel / Copper Nickel / Stainless Steel
• Baff les – Steel
• Mounting Brackets – Steel
• Gaskets – Nitrile Rubber/Cellulose Fiber
• Fins – Aluminum
• Nameplate – Aluminum Foil

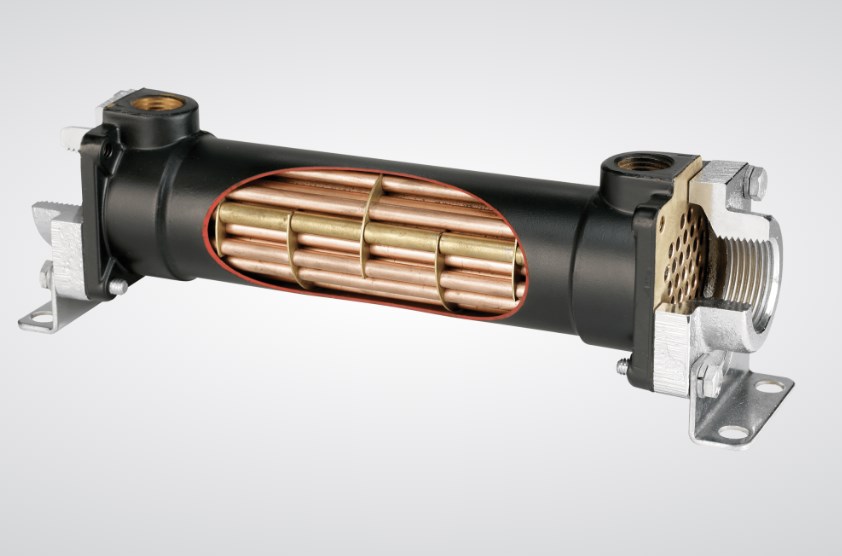

B Series

Bare Tube Bundle Shell & Tube Water to Oil Cooling

The B Series is very versatile in its ability to accommodate multiple application requirements. 700 and 1000 sizes feature 3/8” tube option for less pressure drop. ¼” tube offers greater surface area, and multiple baffle spacing options to optimize heat transfer.
The B series is a non-ferrous, Brass construction, which makes it ideal for water to water, including sea water cooling applications.

Feautures

• Young Touchstone thermal interchange
• Sea water applications end model code with BR-CN-B-Z
• Water to Water applications
• Cooling Tube Side Material Options
  • Standard Steel
  • Copper Nickel
  • Bronze
• Multiple Connection Options
• End bonnets removable for servicing
• Mounting feet included (may be rotated in 90° increments)

Product Options

• 90/10 copper nickel cooling tubes and bronze end bonnets for sea water service

Ratings

• Maximum Operating Pressure – Shell Side 250 PSI
• Maximum Operating Pressure – Tube Side 150 PSI
• Maximum Operating Temperature 350°F
• Heat Rejection from 2-550 HP (2.7-738 KW)
• Oil Flow from 1-180 GPM (2.2-400 LPM)

Materials

• Tubes – Copper / Copper Nickel
• Hubs – Brass
• Shell – Brass
• Baffles – Brass
• End Bonnets – Cast Iron / Bronze
• Mounting Brackets – Carbon Steel
• Gaskets – Nitrile Rubber / Cellulose Fiber
• Nameplate – Aluminum Foil

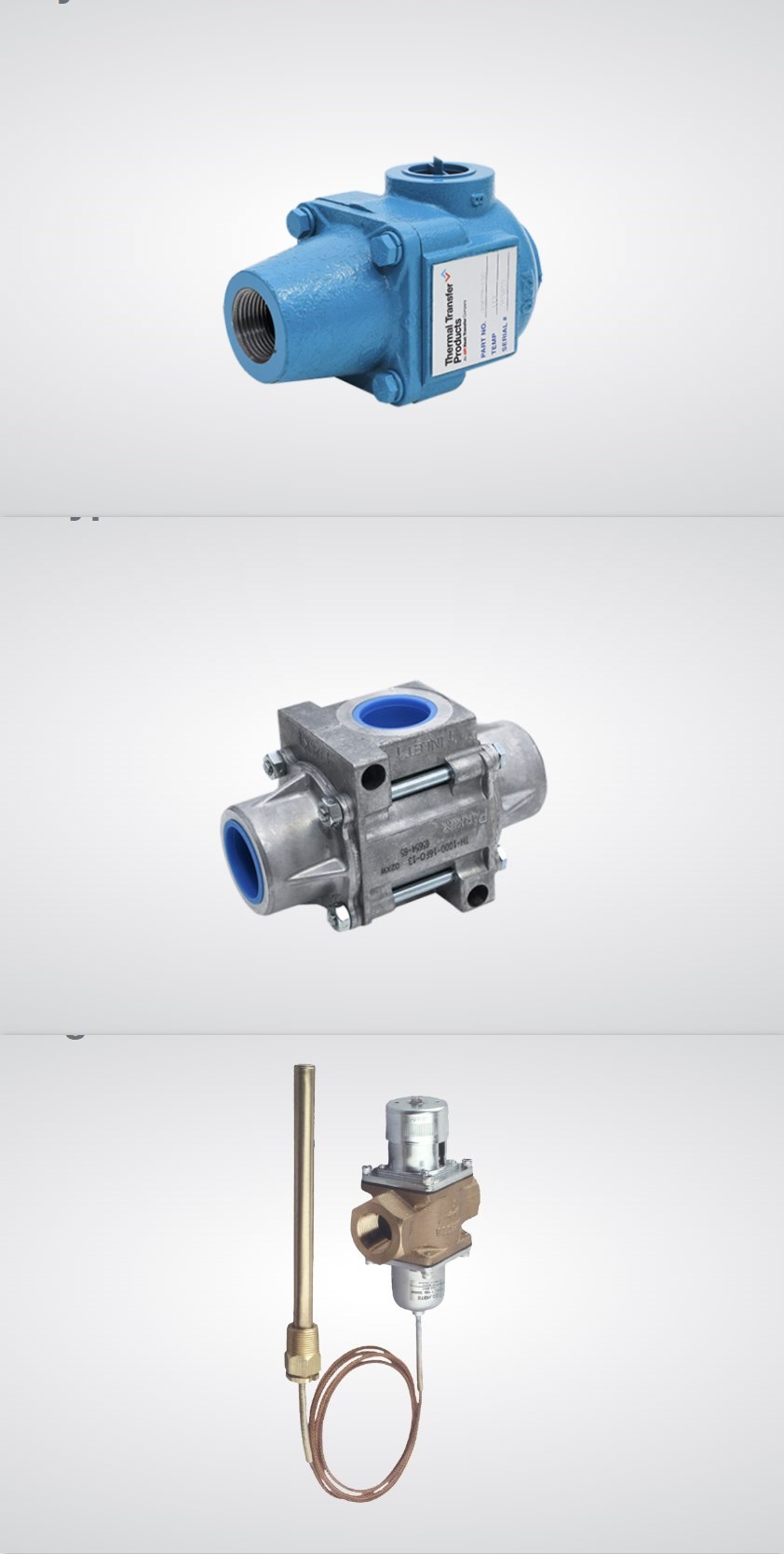

Three-Way Thermostatic Valves

Heavy duty thermostatic valves operate in a wide range of temperatures and in any position. Valves are compact, self-contained and tamper-proof. Acceptable for oil or water service and available with ½”, ¾”, 1″, 1½” & 2″ NPT Ports.





Thermal Bypass

Thermal bypass valves are ideally suited for hydrostatic drive circuits which require fast warm-up, controlled fluid temperature, and low return line back pressure. When installed in the return line of a hydraulic circuit that employs an oil cooler, this device will modulate fluid temperature by either shifting return line flow through the cooler, or bypassing directly to the reservoir. A built-in pressure relief function automatically relieves excess pressure to the reservoir should the cooler become restricted and resultant pressure drop become too high for the cooler circuit.




Modulating Water Valve

Modulating valves open automatically when temperature increases at the sensing bulb. No external power source is required to actuate the valve. Not to be used for salt water service. All stock valves are supplied with a drilled and tapped internal by-pass in the regulator body. A solid plug is installed in this hole for 100% shut-off. A drilled orifice plug is packed in an envelope with each valve for field installation, if continuous minimum flow is required. These modulating valves regulate the flow of water to the heat exchanger to maintain a desired exiting oil temperature.
