AC Electric Drive with Axial Pump

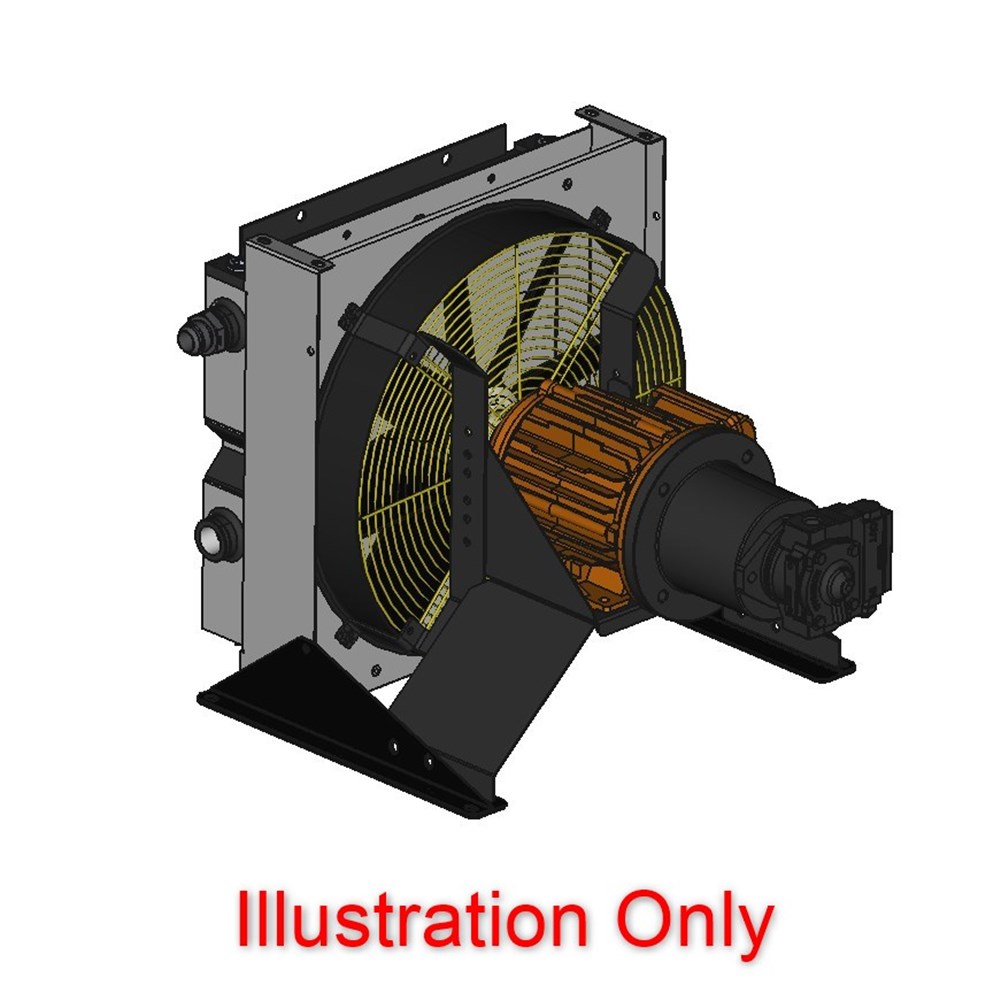

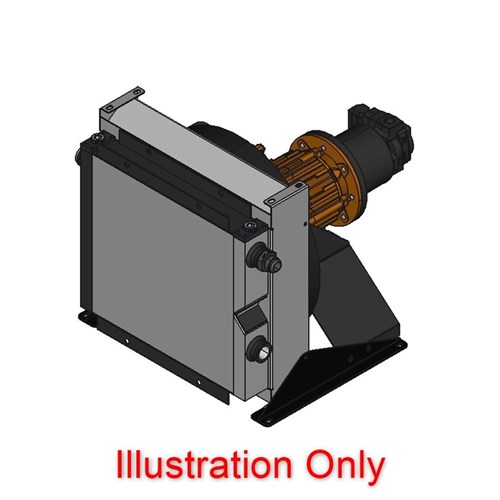

AIR COOLED Heat Exchanger VC VCL7X 415V 3 Phase 50Hz 4Pole With 20UR 60l/min Pump

Product Code: VCL7XAC4HP60

In Stock Low Stock Contact for Availability Please See Attributes
Enquire
Technical Specifications
Description of part Air cooled Heat Exchanger
Series VERSACOOL with Coaxial Pump
Model VCL7
Cooling Element Type Aluminium Hi Flow 65mm Operating Pressure 20 Bar
Port Orientation Hoizontal
Fan Diameter 450 mm
Drive Type 3 Phase 415v Electric Motor
Motor/Fan Speed 4 Pole Nom 1450 rpm at 50Hz
Cooler Pump Type Haight Pump
Cooler Pump Flow Rate 60L/min
Noise Level dBA at 1m 78 DBA
Weight of Item 81.0 KG
Qty Each (inc GST) Each
Spare Parts
COOLING ELEMENT Aluminium VC7X replacement 20 Bar 1 1/4" BSPP
COOLING ELEMENT Aluminium VC7X replacement 20 Bar 1 1/4" BSPP 18/07807 In Stock In Stock Contact for Availability Please See Attributes 1
$1706.10 (Each)
Increase value Decrease value
HAIGHT PUMP 20UR Relief Valve 43.53CC with Mechanical Seal CCW Rotation for Pump Coolers
HAIGHT PUMP 20UR Relief Valve 43.53CC with Mechanical Seal CCW Rotation for Pump Coolers 20UR010MA In Stock In Stock Contact for Availability Please See Attributes 1
$4832.30 (Each)
Increase value Decrease value
M28 Flexible Coupling 5/8" Bore 5/32" & 3/16" Key
M28 Flexible Coupling 5/8" Bore 5/32" & 3/16" Key GM28/23 In Stock In Stock Contact for Availability Please See Attributes 1
$84.70 (Each)
Increase value Decrease value
M28 Flexible Coupling 24mm Bore 8mm Key
M28 Flexible Coupling 24mm Bore 8mm Key GM28/74 In Stock In Stock Contact for Availability Please See Attributes 1
$84.70 (Each)
Increase value Decrease value
M28 Nylon Element White with 28 Teeth
M28 Nylon Element White with 28 Teeth GM28/E In Stock In Stock Contact for Availability Please See Attributes 1
$67.10 (Each)
Increase value Decrease value
