DYNACOOL
Air Cooled Heat Exchangers
AC Electric Drive with Axial Pump
AIR COOLED Heat Exchanger VC VCL7X 415V 3 Phase 50Hz 6Pole With 20UR 40l/min Pump
AC Electric Drive with Axial Pump
Zoom
Zoom

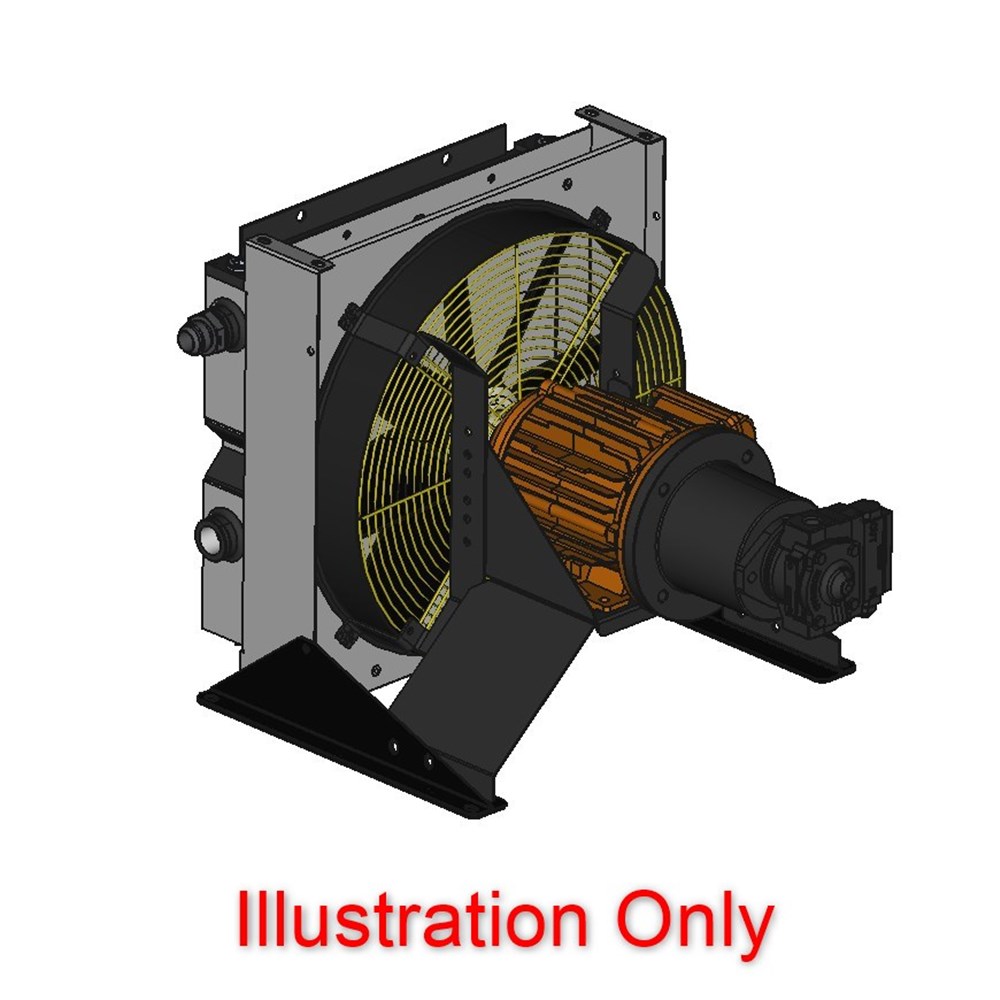

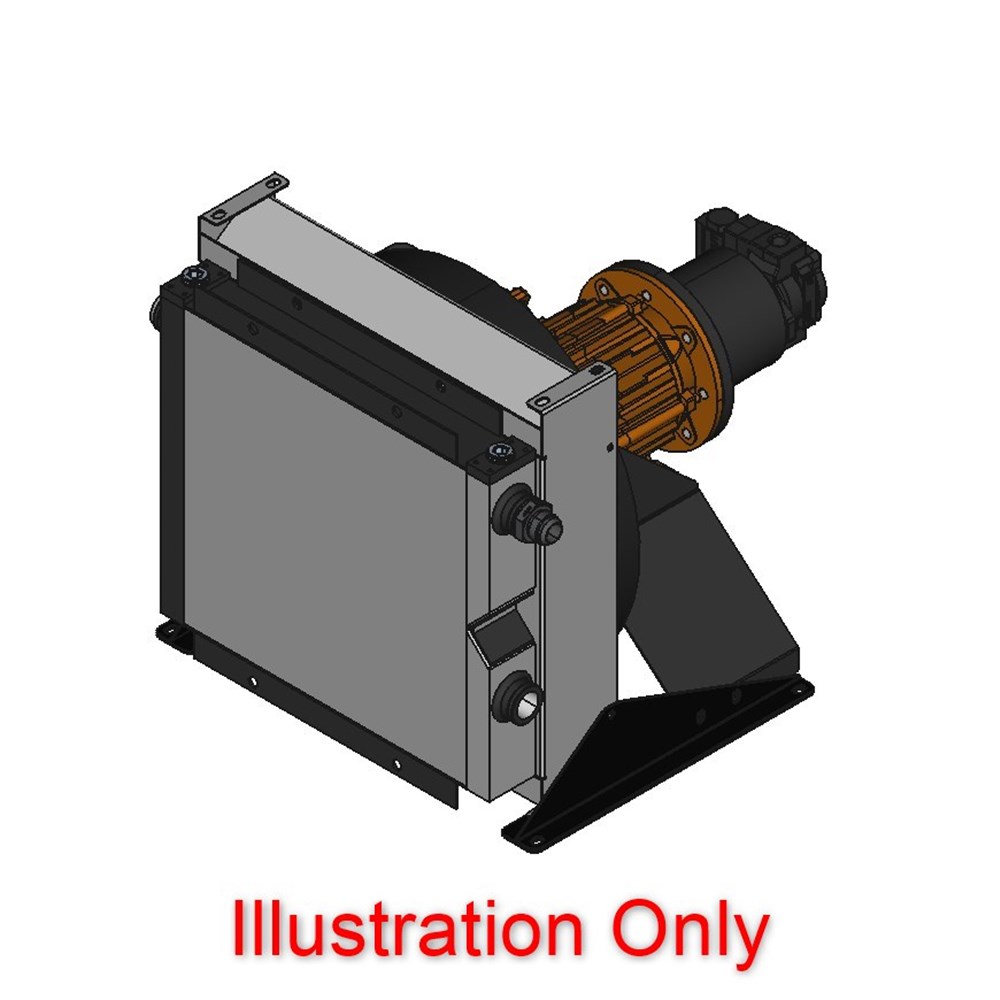

AIR COOLED Heat Exchanger VC VCL7X 415V 3 Phase 50Hz 6Pole With 20UR 40l/min Pump
Product Code: VCL7XAC6HP40
In Stock
Low Stock
Contact for Availability
Please See Attributes
Enquire
Technical Specifications
Description of part
Air cooled Heat Exchanger
Series
VERSACOOL with Coaxial Pump
Model
VCL7
Cooling Element Type
Aluminium Hi Flow 65mm Operating Pressure 20 Bar
Port Orientation
Hoizontal
Fan Diameter
450 mm
Drive Type
3 Phase 415v Electric Motor
Motor/Fan Speed
6 Pole Nom 950 rpm at 50Hz
Cooler Pump Type
Haight Pump
Cooler Pump Flow Rate
40 L/min
Noise Level dBA at 1m
70 DBA
Weight of Item
81.0 KG
Multi Buy
Qty
Each (inc GST)
Each
Spare Parts
COOLING ELEMENT Aluminium VC7X replacement 20 Bar 1 1/4" BSPP
18/07807
In Stock
In Stock
Contact for Availability
Please See Attributes
1
$1706.10
(Each)
Increase value
Decrease value
HAIGHT PUMP 20UR Relief Valve 43.53CC with Mechanical Seal CW Rotation
20UR010M0
In Stock
In Stock
Contact for Availability
Please See Attributes
1
$4832.30
(Each)
Increase value
Decrease value
M28 Flexible Coupling 5/8" Bore 5/32" & 3/16" Key
GM28/23
In Stock
In Stock
Contact for Availability
Please See Attributes
1
$84.70
(Each)
Increase value
Decrease value
M28 Flexible Coupling 24mm Bore 8mm Key
GM28/74
In Stock
In Stock
Contact for Availability
Please See Attributes
1
$84.70
(Each)
Increase value
Decrease value
M28 Nylon Element White with 28 Teeth
GM28/E
In Stock
In Stock
Contact for Availability
Please See Attributes
1
$67.10
(Each)
Increase value
Decrease value
Add All To Cart
