Hydraulic Motor Drive with Bypass

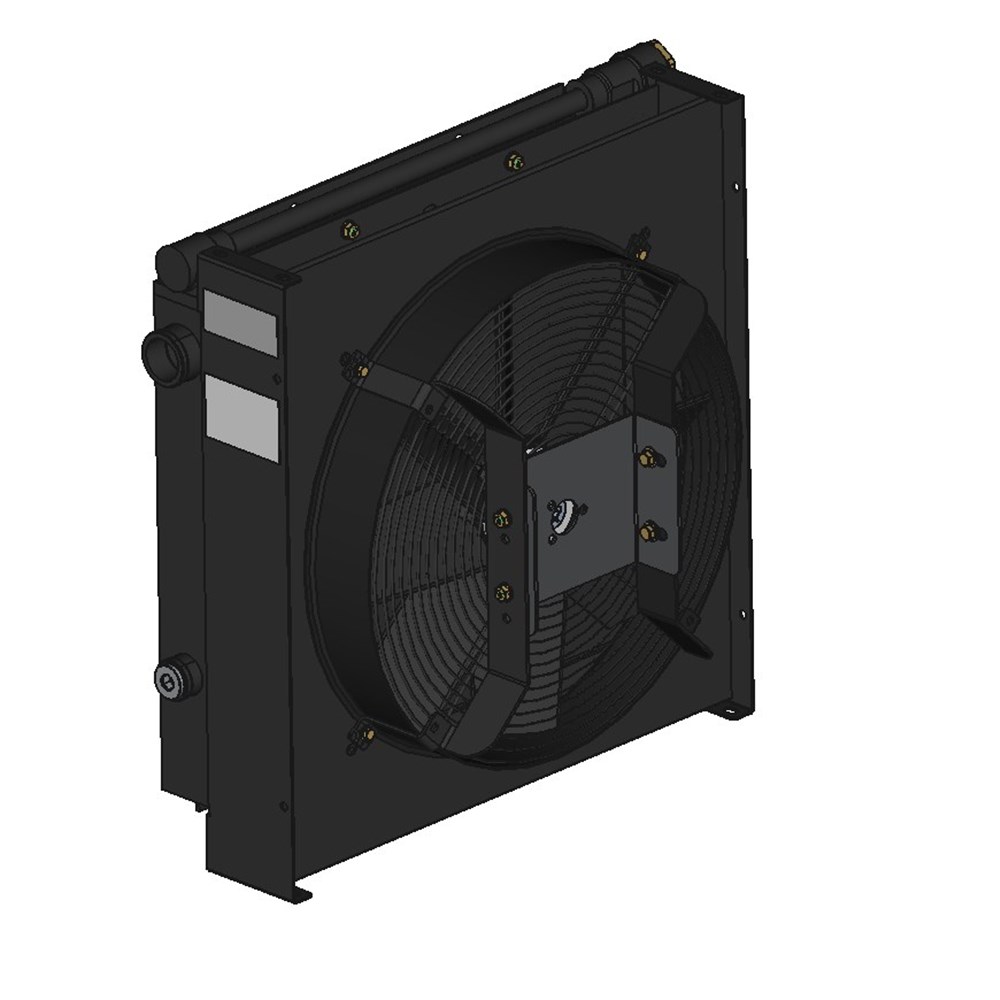

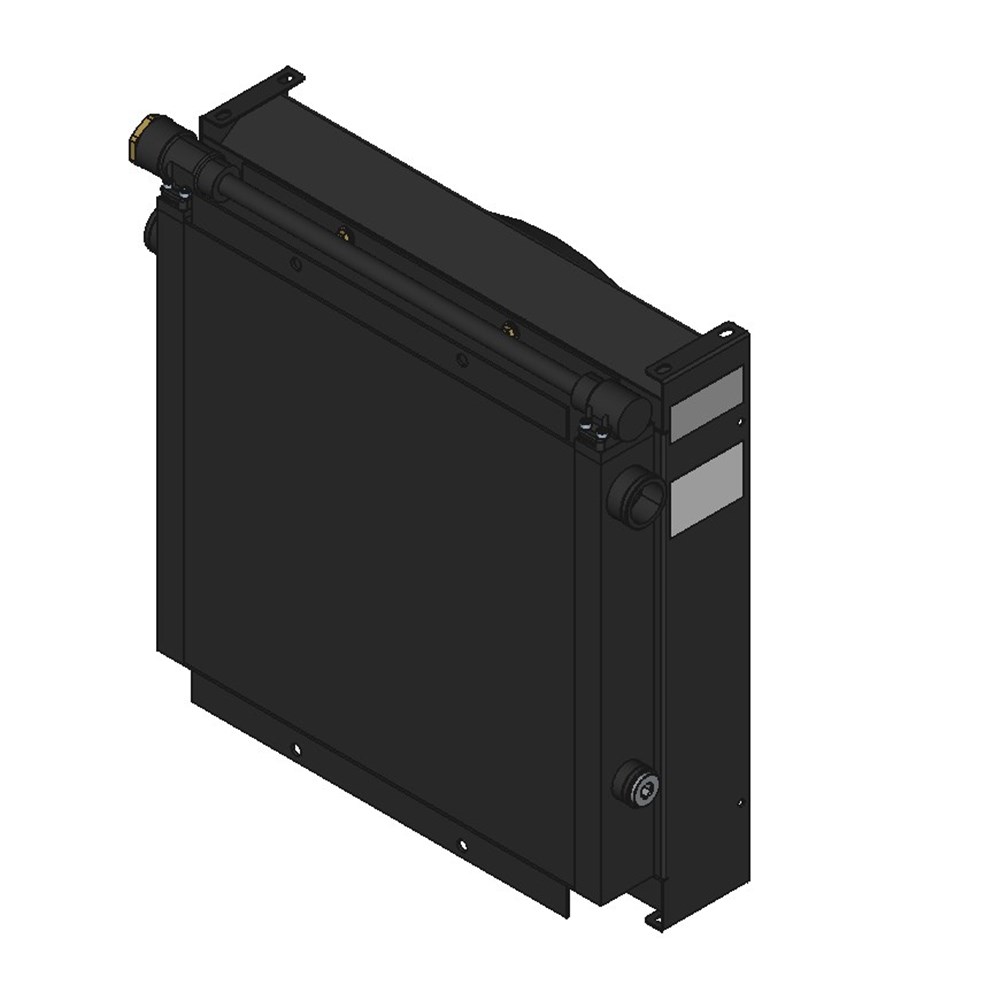

AIR COOLED Heat Exchanger VC VCL7X ORBIT Hyd Motor 8.2cc Rear Port & Bypass 50-60c 4Bar

Product Code: VCL7XHF12B504

In Stock Low Stock Contact for Availability Please See Attributes
$5406.50 inc GST
Increase value Decrease value
Technical Specifications
Description of part Air cooled Heat Exchanger
Series VERSACOOL Hydraulic Drive
Model VCL7
Cooling Element Type Aluminium Hi Flow 65mm Operating Pressure 20 Bar
Port Orientation Hoizontal
Fan Diameter 450 mm
Drive Type Hydraulic Orbit Motor with 3/8" BSPP end ports
Motor/Fan Speed 8.2cc/rev (1440 rpm @ 12 l/min)
Special Feature, Detail or Finish Temperature and Pressure Bypass
Noise Level dBA at 1m 78 DBA
Weight of Item 29.0 KG
Qty Each (inc GST) Each
Spare Parts
COOLING ELEMENT Aluminium VC7X replacement 20 Bar 1 1/4" BSPP
COOLING ELEMENT Aluminium VC7X replacement 20 Bar 1 1/4" BSPP 18/07807 In Stock In Stock Contact for Availability Please See Attributes 1
P.O.A. (Each)
​
ORING 1 1/16" OD x 13/16" ID x 1/8" thick
ORING 1 1/16" OD x 13/16" ID x 1/8" thick AS-211 In Stock In Stock Contact for Availability Please See Attributes 4
$9.90 (Each)
